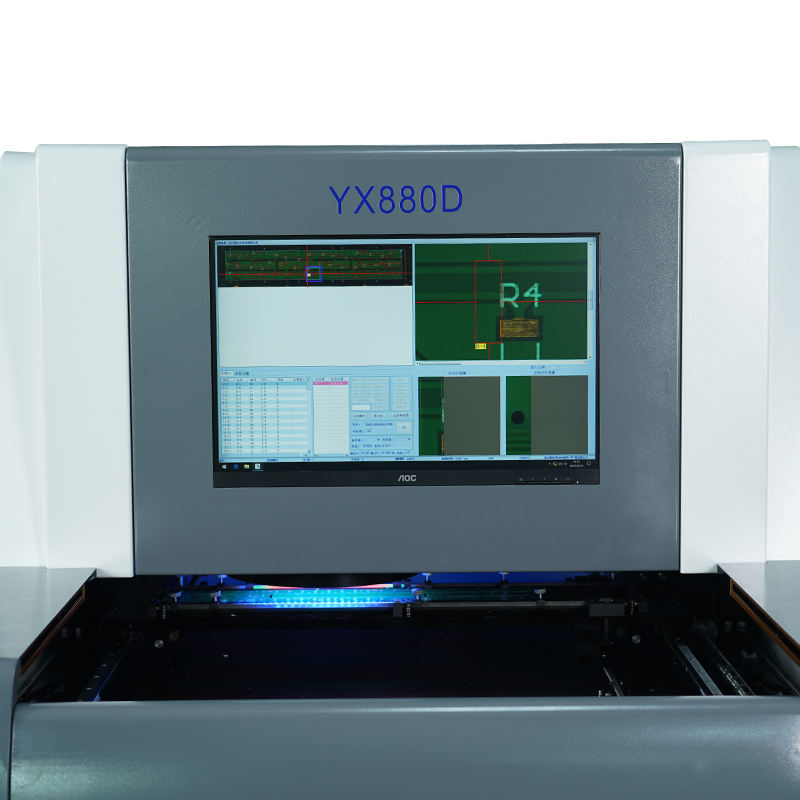

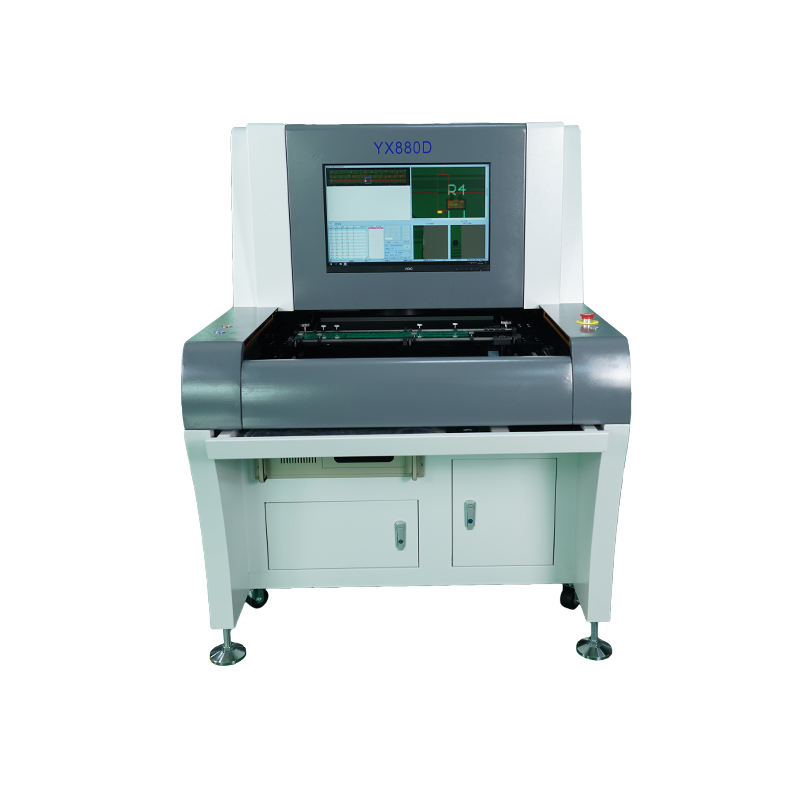

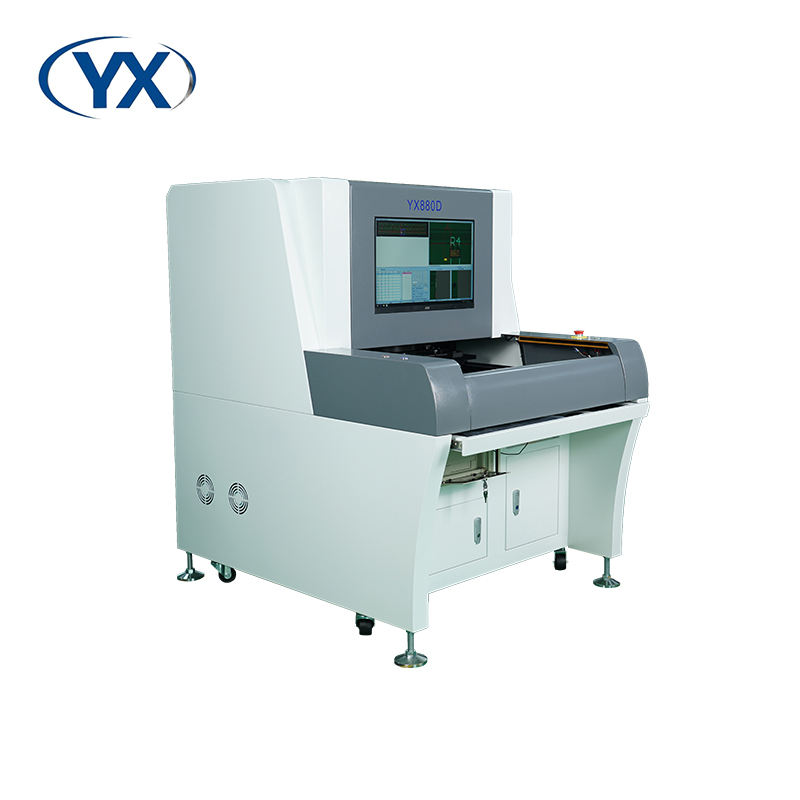

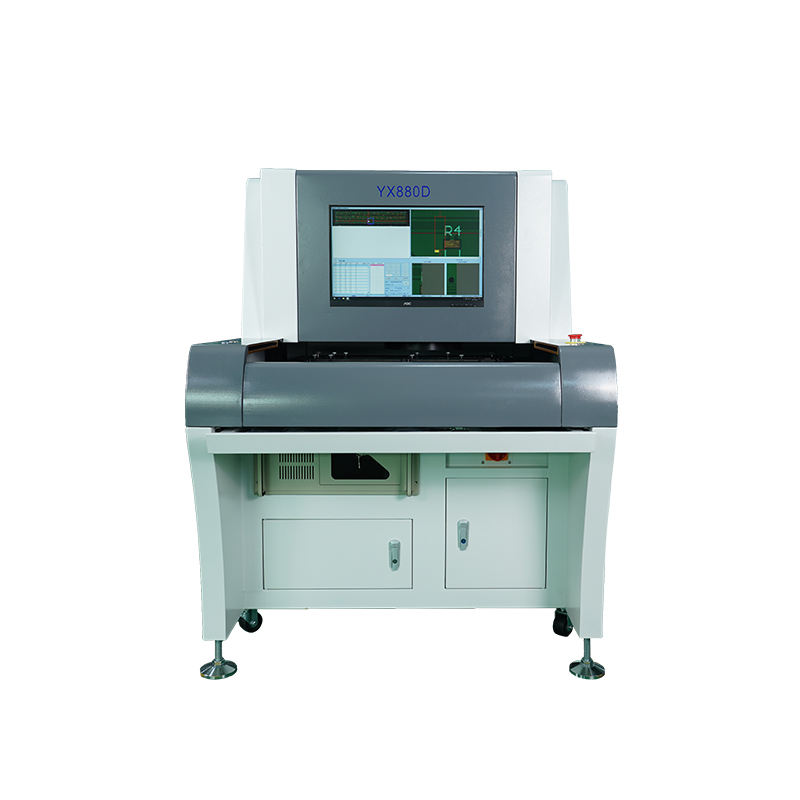

The YX880D Inspection AOI PCB Machine is designed for automatic optical inspection of printed circuit boards (PCBs), ensuring high-quality inspection and accuracy in SMT off-line production processes.
The dimensions of the YX880D machine are 900mm (L) x 1100mm (W) x 1400mm (H).
The YX880D can accommodate PCBs with dimensions ranging from 20mm x 20mm to 450mm x 350mm.
The YX880D operates on Windows XP and is equipped with 16GB of RAM.
The machine utilizes advanced high-speed optical inspection technology and a CCD camera with a resolution of 500 million pixels from German Basler to ensure accurate inspections.
The machine requires a power supply of 1.2KW and operates at AC 220±10% voltage.

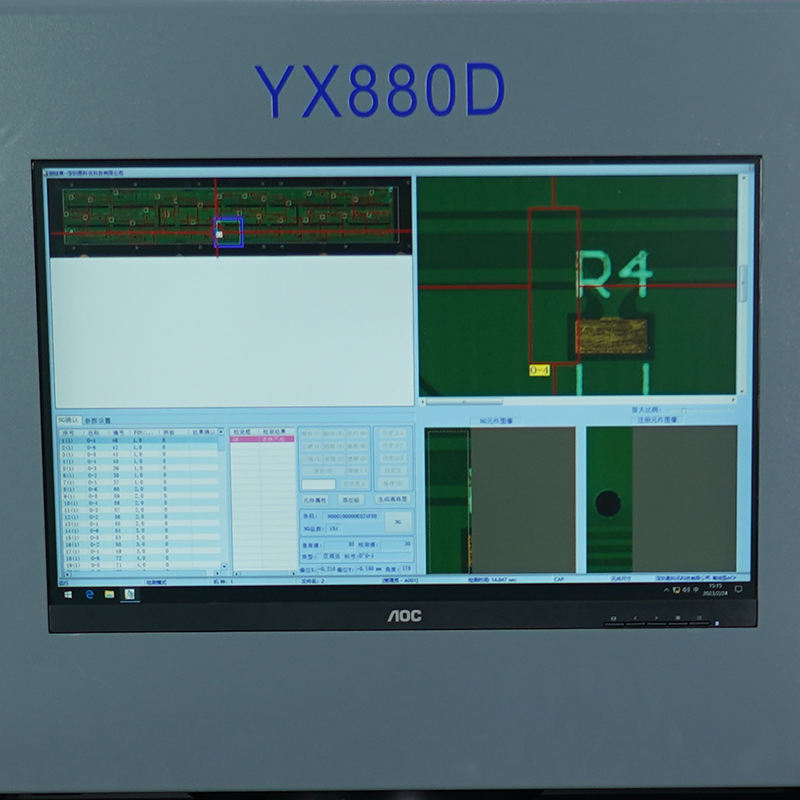

Yes, the interface language can be set to either Chinese or English, providing flexibility for users.
The machine weighs 450.000 kg.
The maximum moving speed of the YX880D is 800mm/s.
The machine can handle PCBs with a thickness ranging from 0.3mm to 5.0mm.
Key applications include quality control in PCB manufacturing, inspection of SMT components, defect detection for electronic devices, ensuring compliance with industry standards, and improving production efficiency.

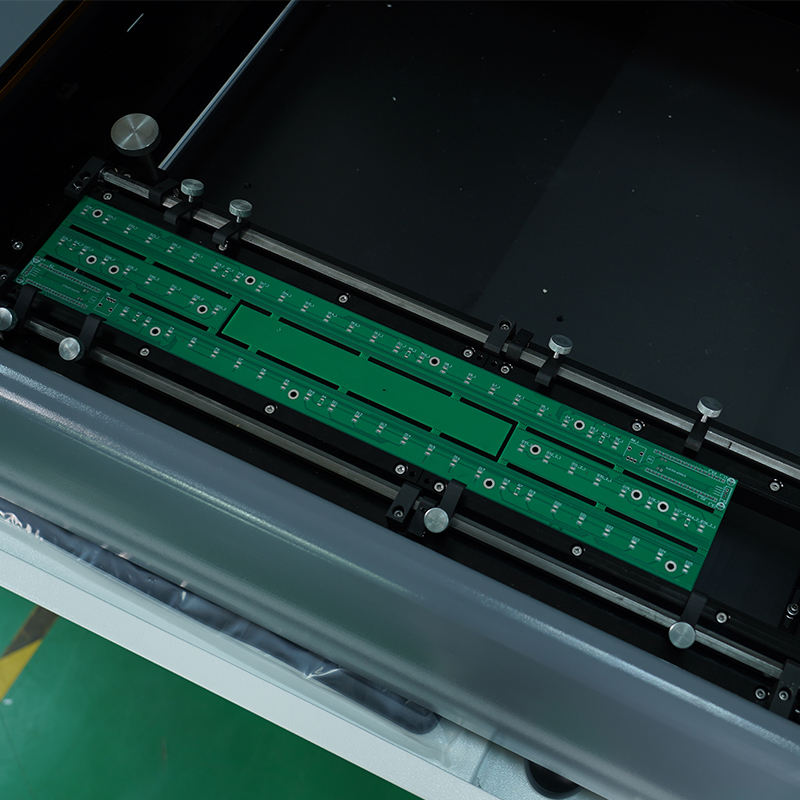

Yes, the YX880D features an automatic fixture for easy setup of PCBs.
Advantages include high-speed optical inspection, user-friendly interface, compact design, and compatibility with a wide range of PCB sizes.
By ensuring accurate inspections and defect detection, the YX880D helps in identifying issues early, thus reducing waste during production processes.
Yes, the compact design of the YX880D makes it suitable for various manufacturing environments, including smaller spaces.
