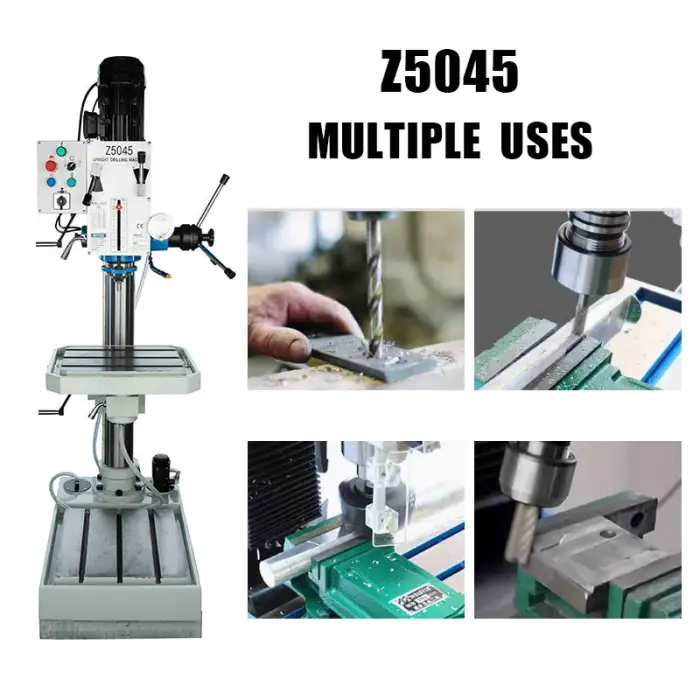

The WMTCNC Vertical Drilling Z5045 is a high-performance vertical drilling machine, ideal for precision metal processing tasks. Featuring a robust 1.5kW power motor and a max drilling diameter of 45mm, this machine is designed for metal drilling, milling, and tapping, making it perfect for applications that require accuracy and reliability.
High Drilling Capacity (45mm):
With a maximum drilling diameter of 45mm, the Z5045 provides exceptional drilling power, making it ideal for a wide range of metal processing tasks. It’s capable of handling medium to large-scale drilling applications with ease.
Adjustable Spindle Speed (80-1250rpm):
The Z5045 comes with a variable spindle speed range (80 - 1250 rpm), giving you the flexibility to adjust the speed according to the material and specific requirements of your drilling project.
Powerful 1.5kW Motor:
Equipped with a 1.5kW motor, this vertical drilling machine provides the necessary strength to complete demanding tasks. Whether you're drilling, milling, or tapping, it offers reliability and consistent performance.
Versatile Metal Processing Application:
Perfect for metal drilling, milling, and tapping, the Z5045 can handle a variety of materials, from standard metals to more complex alloys. It's a perfect fit for industrial environments that require precise, high-volume processing.
Durable and Reliable:
The Z5045 features high-quality components including bearing, pump, gear, PLC, and pressure vessel, ensuring durability and long-term reliability. It’s built to withstand heavy use in demanding industrial environments.
Compact and Sturdy Design:
The Z5045 is designed with a sturdy frame and a table size of 380*300mm, making it ideal for both small and medium-sized workshops. Its compact structure allows easy integration into your workshop space.
Competitive Price:
Offering outstanding value, the WMTCNC Vertical Drilling Z5045 combines precision, power, and durability at a competitive price, making it a great investment for businesses looking to upgrade their metal processing capabilities.
Comprehensive Warranty:
The Z5045 is backed by a 13-month warranty, ensuring peace of mind for your investment and protection against manufacturing defects.
1,Drilling,milling,tapping.
2,Headstock and worktable up and down perpendicularly.
3,Head swivels 360° horizontally.
4,Gear driven,lower noise.
5,Positive spindle lock.
| Specification | Z5032 Z5040 Z5045 | Z5032/1 Z5040/1 Z5045/1 |
| Max.drilling capacity | Φ32mm/Φ40mm/Φ45mm | |
| Spindle taper | MT3/MT4/R8 | |
| Spindle travel | Φ130mm | |
| Step of spindle speed | 6 steps | |
| Range of spindle speed 50Hz | 80-1250rpm | |
| 60Hz | 95-1500rpm | |
| Step of spindle auto-feeding | / | 6steps |
| Range of spindle auto-feeding amount | / | 0.06-0.30rpm |
| Min.distance from spindle axis to column | 290mm | |
| Max.distance from spindle nose to worktable | 700mm | 725mm |
| Max.distance from spindle nose to stand table | 1125mm | |
| Max.travel of headstock | Φ250mm | |
| Swivel angle of headstock(horizontal/vertical) | 360° | |
| Max.travel of worktable bracket | Φ600mm | |
| Worktable size of avaliablity | 730*210mm | 380*300mm |
| Swivel angle of table horizontally | 360° | |
| Table leaned | / | 45° |
| Size of stand worktable of avaliability | 417×416mm | |
| Motor Power | 0.75kw/1.1kw/1.5kw | 0.75kw/1.1kw/1.5kw |
| Speed of motor | 1400rpm | 1400rpm |
| N.W/G.W | 440/490kgs | 470/530kgs |
| Packing size | 1850×750×1000mm | 1850×950×1000mm |
| Loading amount/20" container | 18pcs | 12pcs |
