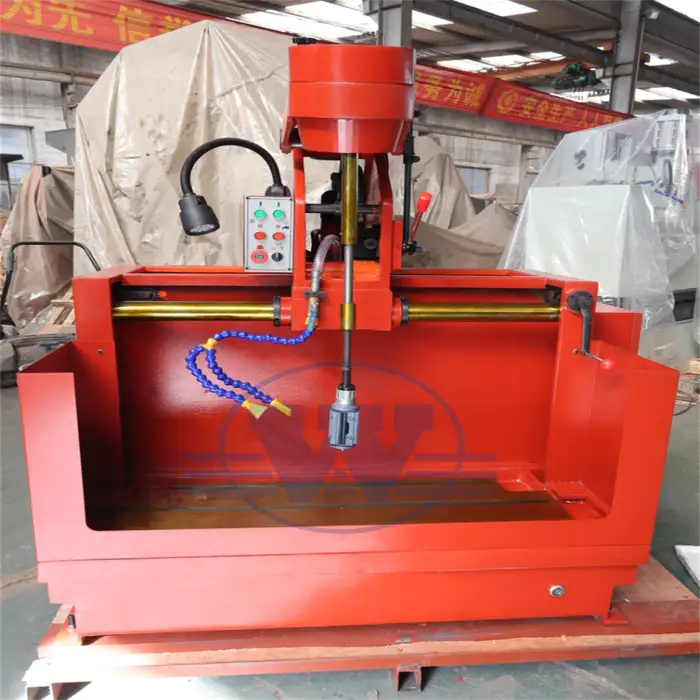

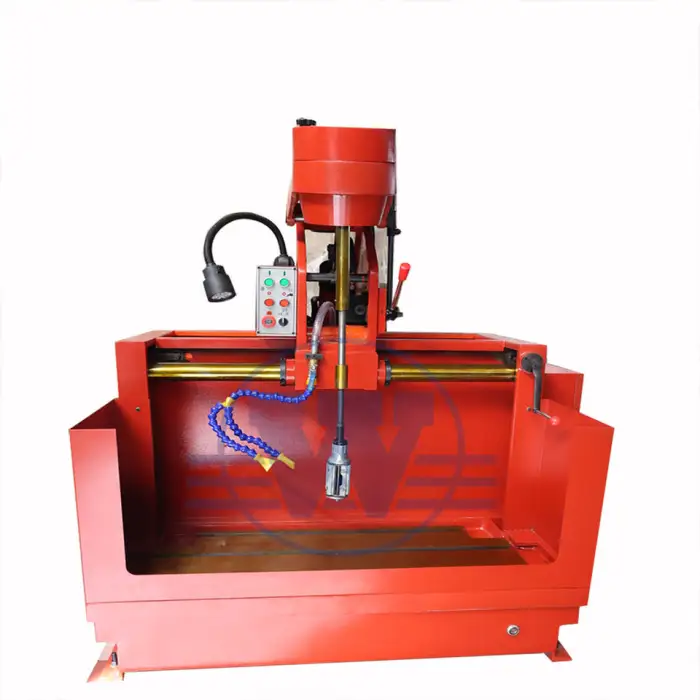

The primary function of the Vertical Automotive Honing Machine is to provide precision engine cylinder boring, enhancing efficiency and accuracy in honing tasks.
The machine's working inside cavity dimensions are 1400mm x 870mm.

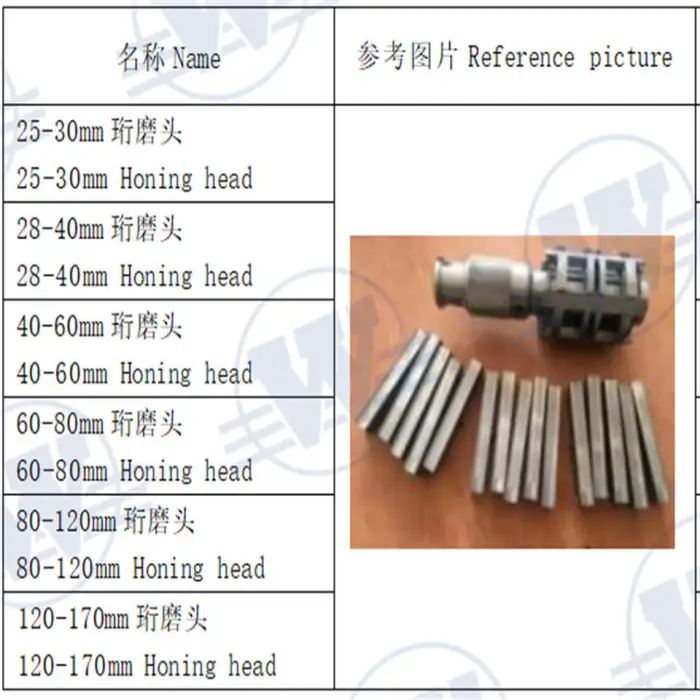

The machine can hone holes with a maximum depth of 320mm and a maximum diameter range of 25mm to 170mm.
The net weight of the machine is 1100kg, and the gross weight is approximately 6 tons.
The overall dimensions of the machine are 1650mm x 1670mm x 1920mm.
The power of the main motor is 1.5kW, and the power of the cooling pump motor is 0.125kW.
The machine is equipped with 3 spindles.
The production capacity is 50 sets per month.
The machine operates on either 380V or 220V.
The machine comes with a 1-year warranty.
This honing machine is suitable for engine rebuilding, remanufacturing, automotive repair workshops, and manufacturing engine components.
The automatic operation feature enhances efficiency and reduces manual labor, allowing for more consistent and precise honing results.
The positioning accuracy is 0.04mm for the X, Y, and Z axes.
Yes, the machine has a range of spindle speeds, with a maximum speed of 350 r.p.m.
Yes, the compact design of the machine allows it to fit well in various workshop environments.
