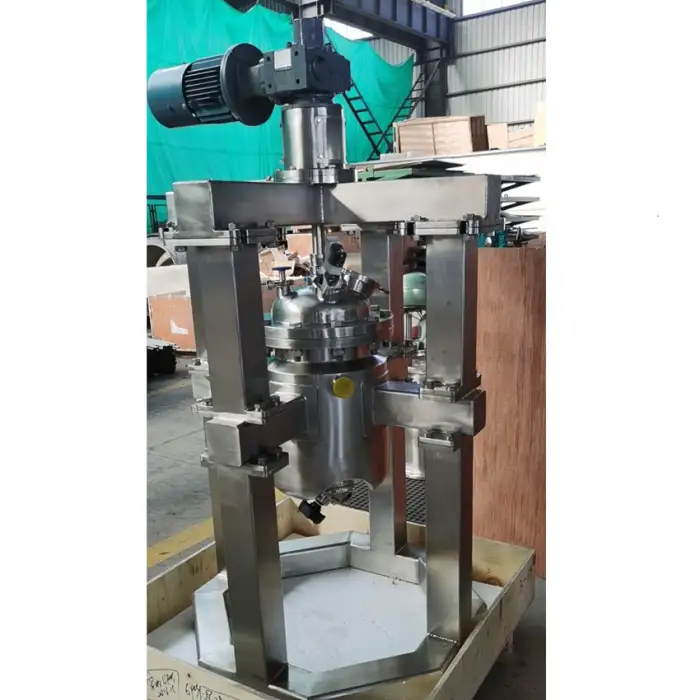

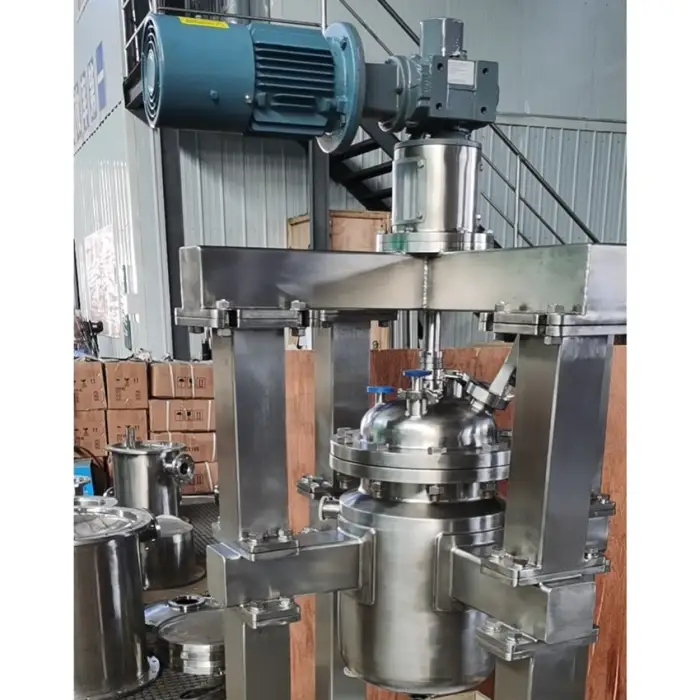

Stainless Steel 20L Chemical Jacketed Reactor
- Section : Machinery
- Category : Chemical Machinery
- SKU : 1600206151214
Stainless Steel 20L Chemical Jacketed Reactor
The Stainless Steel 20L Chemical Jacketed Reactor is a versatile and reliable solution for laboratory and small-scale industrial processes. Ideal for blending, mixing, and homogenizing liquids, it is designed to handle viscous fluids, chemicals, and food products with precision and safety..
Key Features
- High-Performance Mixing: Equipped with a top mechanical agitator and a homogenizer for efficient blending and emulsification.
- Premium Materials: Built with SS304/316 stainless steel for durability, corrosion resistance, and compatibility with various applications.
- Adjustable Speed: Features a spindle speed range of 1–2900 rpm for versatile processing requirements.
- Efficient Heating: Supports electric or steam heating with a maximum temperature of ≤150°C for optimal control.
- Robust Construction: Includes explosion-proof motor, pressure vessel, and reliable core components for safe operation.
- Compact Design: Dimensions of L890xW890xH1550mm make it space-efficient and suitable for laboratory use.
- Customizable Options: Dimensions and other features can be tailored to specific requirements.
- Wide Applications: Suitable for chemicals, food processing, shampoo production, and other viscous fluid applications.
- Certified Safety and Quality: Machinery test reports and video inspections provided to ensure reliable performance.
| Structure | Vertical, ellipse top or flat top, support by legs or lifting lugs. Single wall, or with jacket, or with insulation. |
| Material | Material adopts S31603, or S304 |
| Jacket Type | Full jacket, internal coil, external semi-coil, dimple jacket.lab reactor |
| Insulation | Adopts aluminum silicate or polyurethane, thickness 50 mm or 75 mm. |
| Surface Finishing | Mechanical polishing, internal mirror polishing Ra 0.45; External matte, Ra 0.8 |
| Heating Method | Steam heating, electric heating, thermal oil/hot water heating |
| Agitation System | Adopt top center-entry agitator or side-entry agitator. Agitator type: frame, anchor, paddle, turbine, spiral, screw, magnetic stirring. Agitation speed: 10~120rpm, fixed speed or frequency speed. Motor power: 0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 5.5kw, 7.5kw, etc. |
| Accessories | Manhole, CIP spraying ball, thermometer, piezometer, air filter, sight glass, light, counter flange. |
| Standard | All according to GMP requirements and GB150.1~4-2011 Design, Fabrication, Inspection and Acceptance. |
| ODM/ODM | Can be customized according to customers requirement and product process. |
Size Information
| Volume （L） | Core Dia. (mm) | Jacket Cover dia (mm) | Motorpower (KW) | Working pressure (MPa) | Speed RPM | Vacuum (MPa) | Working temperature (℃) |
| 30 | 400 | 500 | 0.6-1.1 | homoeothermy | 51-35 | < - 0.09 | 0~100 |
| 50 | 500 | 600 | 0.6-1.1 | homoeothermy | 51-35 | < - 0.09 | 0~100 |
| 100 | 550 | 650 | 1.1-1.5 | homoeothermy | 51-35 | < - 0.09 | 0~100 |
| 150 | 600 | 700 | 2.2 | homoeothermy | 51-35 | < - 0.09 | 0~100 |
| 200 | 650 | 750 | 2.2 | homoeothermy | 51-35 | < - 0.09 | 0~100 |
| 300 | 2050 | 110 | 3 | homoeothermy | 51-35 | < - 0.09 | 0~100 |
| 500 | 900 | 1000 | 4 | homoeothermy | 51-35 | < - 0.09 | 0~100 |
| 800 | 1100 | 1200 | 5 | homoeothermy | 51-35 | < - 0.09 | 0~100 |
| 1000 | 1200 | 1300 | 6 | homoeothermy | 51-35 | < - 0.09 | 0~100 |
| 1500 | 1300 | 61400 | 4 | homoeothermy | 51-35 | < - 0.09 | 0~100 |
| 2000 | 1400 | 1500 | 4 | homoeothermy | 51-35 | < - 0.09 | 0~100 |
| 2500 | 1400 | 1500 | 7.5 | homoeothermy | 51-35 | < - 0.09 | 0~100 |
| 4000 | 1500 | 1600 | 7.5 | homoeothermy | 51-35 | < - 0.09 | 0~100 |
| 8000 | 2000 | 2100 | 15 | homoeothermy | 51-35 | < - 0.09 | 0~100 |
| 32000 | 3000 | 2100 | 37 | homoeothermy | 51-35 | < - 0.09 | 0~100 |
The Stainless Steel 20L Chemical Jacketed Reactor combines high safety standards with exceptional functionality, making it an essential tool for precision mixing in laboratories and small-scale production settings.
