Key Features at a Glance
Wide Range of Power Outputs:
The UGY Series Diesel Generator offers power outputs ranging from 5KW to 2250KVA, catering to both small and large-scale power generation needs. Whether you need backup power for a home or industrial-grade solutions, this generator is designed to provide dependable energy.
Silent Operation for Peaceful Environments:
The silent type design ensures noise levels are kept between 65-95 dB(a) at 1 meter, making it an ideal choice for residential areas, hospitals, and noise-sensitive environments.
Robust Engine Performance:
Equipped with a variety of world-renowned diesel engines, including UK, USA, Kubota, and Germany options, the UGY series ensures top-tier performance. The engines are 4-stroke, water-cooled, and designed to run efficiently under demanding conditions.
Durable and Efficient Alternator:
The generator features a Stamford/Mecc Alte brushless self-excited alternator that offers superior performance and longevity. With an IP23 protection rating and Class H insulation, the alternator is built to withstand tough operating environments.
Fuel Efficiency and Low Operating Costs:
This generator is engineered to be fuel-efficient, with a fuel consumption rate of ≤238g/kW*h, reducing operational costs and environmental impact while delivering powerful output.
Wide Application Range:
Whether for residential, industrial, or commercial use, this generator is ideal for backup power, off-grid power supply, and continuous power generation in areas where reliability is paramount.
| Model | Rated Output (KW/KVA) | Rated Voltage | Rated Frequency | Noise Level (dB) | Diesel Engine | Alternator Model | Fuel Consumption (g/kW*h) | Cooling System | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| UGY Series | 5 - 2250KVA | 230/400V | 50/60Hz | 65-95 dB(a) | UK, USA, Kubota, Germany | Stamford/Mecc Alte | ≤238 | Water Cooling | 14857001000mm – 730024402800mm | Specified |
| Product Name | China OEM factory silent type diesel generator |
| Model | UGY series |
| Rated output (KW/KVA) | 5-2250KVA |
| Rated voltage (V) | 230/400V |
| Rated current(A) | 9-4061A |
| Rated frequency | 50/60Hz |
| Power factor | 0.8lagging |
| Noise level dB(a) | 65-95/1m |
| Excitation | self-excitation |
| Phase Number and connection | 3-phase 4-wire system |
| Diesel Engine | UK,USA,kubota Germany diesel engine,4 stroke,water cooled |
| Alternator model | Stamford/Mecc alte brushless self-excited,IP23,Class H. |
| Rated Power (kw/1500rpm) | 5-2250kva |
| Fuel consumption (g/kw*h) | ≤238 |
| Cylinder number | 3,4,6,8,12cylinders |
| Displacement ( L) | specified |
| Cooling system | Water cooling |
| Environmental Conditions | Altitude≤1000M, Cooling air temperature -15°C~ 40°C, Relative humidity≤90% |
| Dimension of set (mm) | 1485*700*1000mm~7300*2440*2800mm |
| Net weight of set (kg) | specified |
| Other spare parts (1 piece) | Gallus Air filter element Diesel oil filter element Machinery oil Specification Special tool |

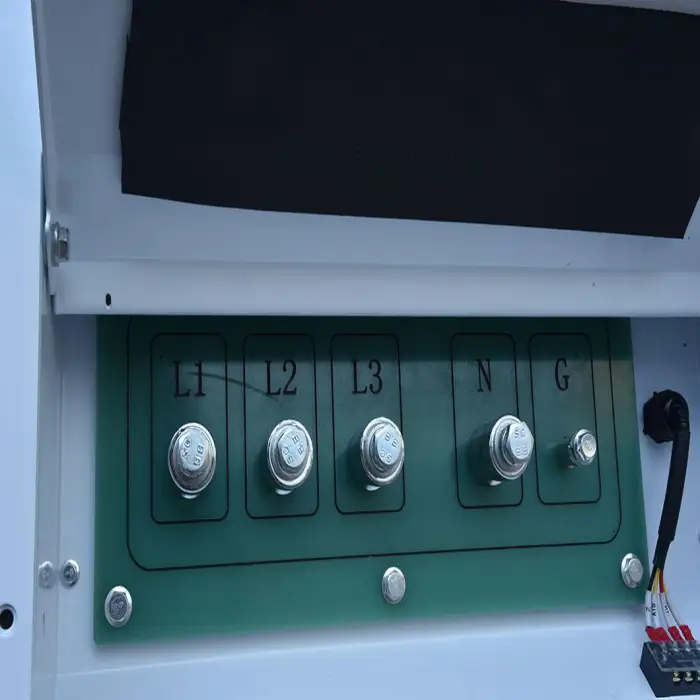

1.Epoxy Resin Board
2.Chrome Plated Terminal
3.Connection way of Generator as prime power (without main power)
4.Connection way of Generator as standby power (transfer between generator and main power.)
