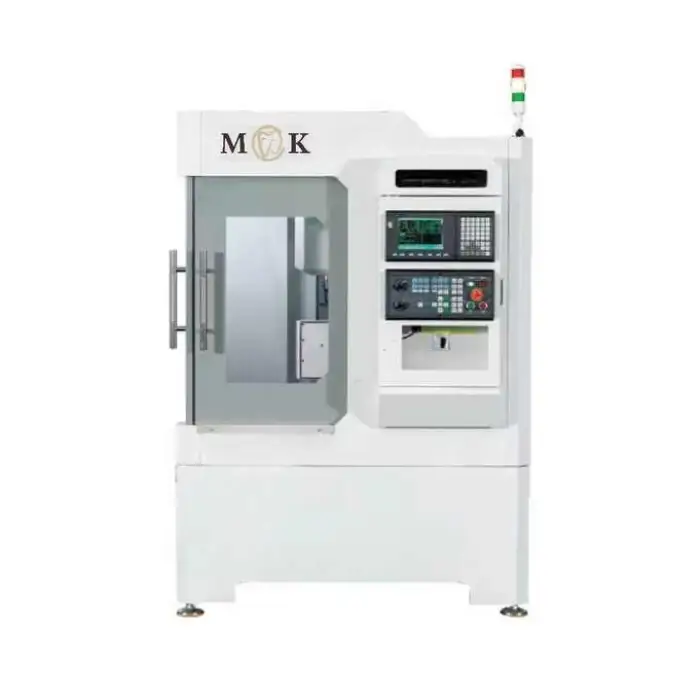

The Product CNC Machining Center is designed for high-speed milling and tapping, offering precision and efficiency for various machining tasks.
Key specifications include a spindle speed range of 5000 to 30000 r.p.m, a maximum table load of 200 kg, and a positioning accuracy of ±0.002 mm.
This CNC machining center can mill materials such as titanium, zirconia, wax, and PMMA.
No, this machine is designed for light-duty applications, providing high accuracy and efficiency in those tasks.
The spindle power of the machine is 2500 W.
The Product CNC Machining Center is available in both 4-axis and 5-axis configurations.
The spindle is water-cooled, ensuring optimal performance during machining operations.
The maximum table load capacity is 200 kg.
The positioning accuracy of the machine is ±0.002 mm, with repeatability of ±0.001 mm for the X, Y, and Z axes.
The machine operates at a voltage of 380V.
The dimensions of the machine are 1350 mm (L) x 1050 mm (W) x 2050 mm (H).
The machine can house up to 14 tools.
The X/Y/Z axes are powered by 400 W servo motors.
Yes, the compact design of the machine makes it suitable for various workshop spaces.
Yes, the machine supports both dry and wet milling modes for versatile machining applications.
