The PAD-300 machine requires a power supply of 4 kW.
The machine can process aluminum foil sheets with a thickness ranging from 0.08 mm to 0.12 mm.
The dimensions of the PAD-300 machine are 7000 mm in length, 1300 mm in width, and 1700 mm in height.
The PAD-300 machine weighs approximately 500 kg.

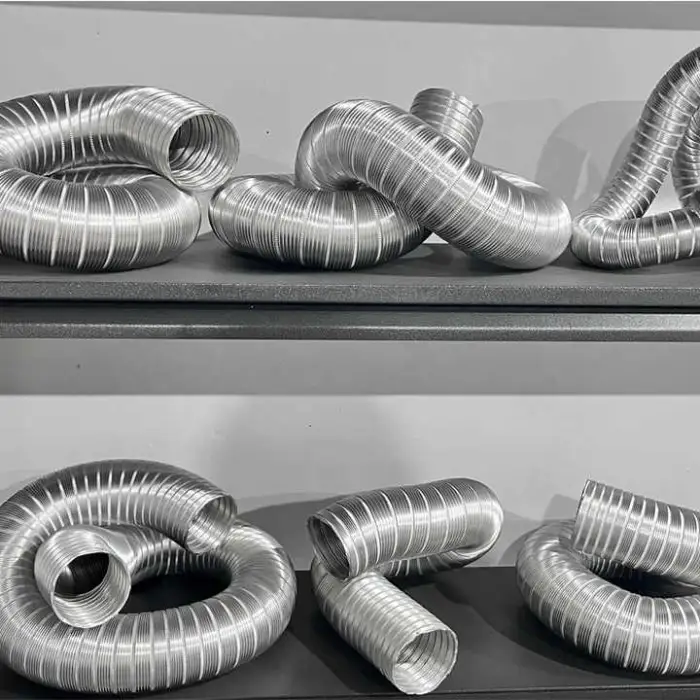

The machine can produce aluminum tubes with a diameter range of 80 mm to 450 mm.
The PAD-300 can create aluminum tubes with lengths ranging from 100 mm to 6000 mm.
The working speed of the PAD-300 machine ranges from 1 to 8 meters per minute.
The PAD-300 is suitable for aluminum foil sheets with a width of 60 mm or 80 mm.
The machine can operate within a temperature range of -30℃ to +250℃.
The maximum humidity level that the PAD-300 can operate in is 95%.
The core components of the PAD-300 include a PLC (Programmable Logic Controller) and an engine.
Yes, the PAD-300 features user-friendly controls that make it easy to operate.
Yes, the PAD-300 is equipped with an auto-cutter for precise cuts.

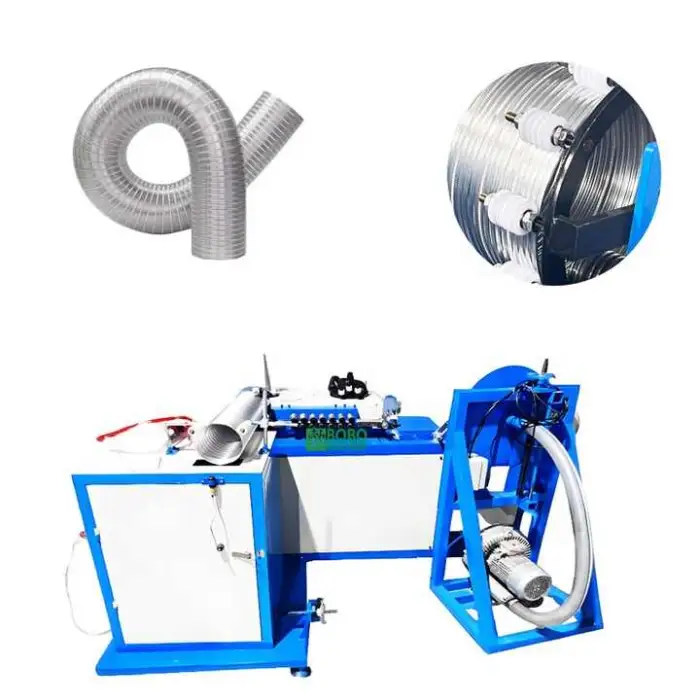

The PAD-300 is ideal for manufacturing flexible aluminum ducts, creating HVAC components, and producing custom aluminum tubing for various industries.
Yes, the PAD-300 is versatile and suitable for both small and large scale production needs.
