The maximum output speed of the machine is 42 m/min.
The output capacity ranges from 0.25 to 1 kg/h.
The machine operates on 220V/380V, 50/60Hz, and requires 850W of power.
The twist range is adjustable between 1200 and 2000 twist/m.
Yes, the machine features automatic functions that make it user-friendly and easy to operate.
The machine comes with a 1-year warranty.
Key components include a PLC, pressure vessel, and pump.
It is ideal for laboratories focused on yarn research and development, small-scale textile production, educational purposes, and testing different yarn twisting techniques.
Yes, it's great for hobbyists looking to create custom yarn products.

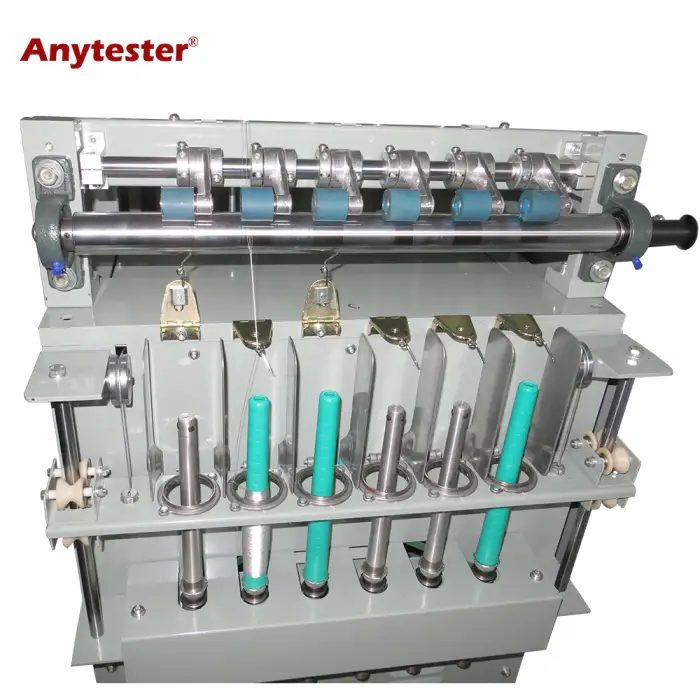

The machine has 12 spindles with a spindle length of 205 mm and a spindle gauge of 25 mm.
The ring diameter options are 38 mm, 42 mm, and 45 mm, while the roller diameter is 75 mm.
Yes, it is suitable for educational purposes in textile engineering courses.
The advanced features and high-speed operation allow for effective twisting, which improves yarn quality.
The adjustable twist range allows for various types of yarn to be twisted effectively.
The production capacity is up to 500 units, depending on the yarn type and settings.
