The maximum swing over bed of the machine is 630 mm.
The machine can accommodate workpieces with lengths of 1000, 1500, 2000, 3000, 4000, or 5000 mm.
The maximum weight of the workpiece that the lathe can handle is 400 kg.
The spindle speed range is from 10 to 1000 revolutions per minute (r.p.m).
The travel for the X axis is 320 mm and for the Z axis is 800 mm.

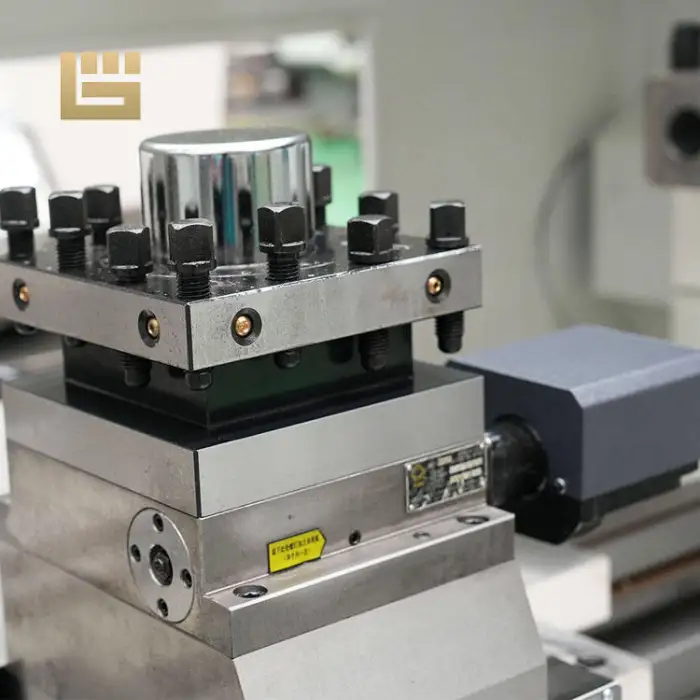

The machine is available with tool post stations of 4, 6, or 8.
The precision rating is ±0.003 mm.
The repeatability in the X, Y, and Z axes is ±0.012 mm.
The weight of the machine is 4800 kg.
The machine operates on a voltage of 380 V.
The warranty period for the machine is 1 year.
The machine features a user-friendly interface that simplifies operation for the user.

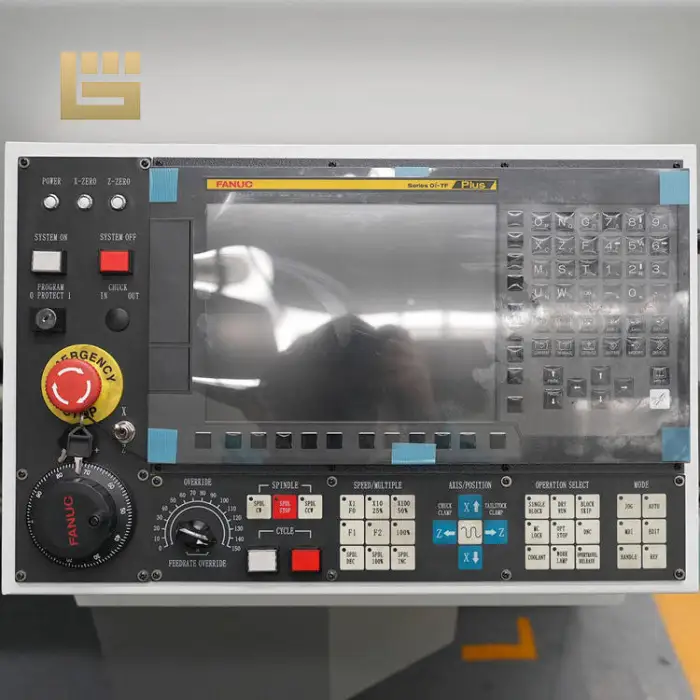

The lathe is equipped with an advanced FANUC CNC control system.
This CNC lathe is suitable for various industries, including automotive and aerospace, as it can perform precision machining of metal parts.
Yes, the machine is capable of performing milling and drilling operations for custom parts.
