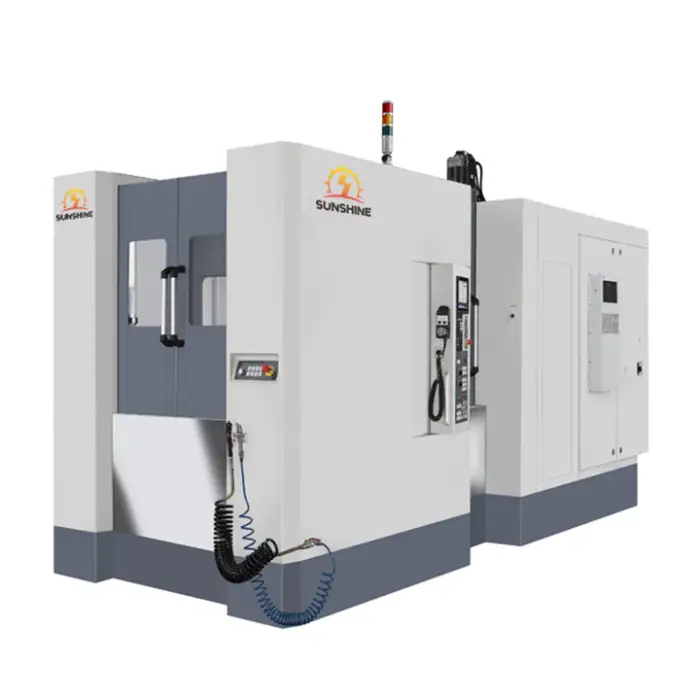

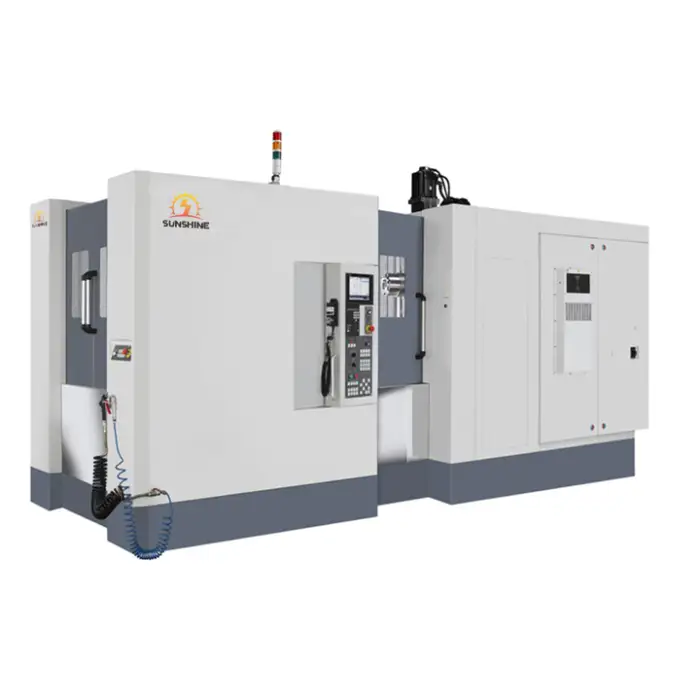

The HMC500 CNC Machine Tool is a powerful and precise horizontal milling center. It is designed for heavy-duty machining tasks. With its advanced Fanuc control system, this machine ensures high accuracy and repeatability. Whether you are working on large projects or intricate designs, the HMC500 is the perfect choice for your machining needs.
| Attribute | Details |
|---|---|
| Table Size (mm) | 500 x 500 |
| Table Travel (X) (mm) | 600 |
| Table Travel (Y) (mm) | 360 |
| Table Travel (Z) (mm) | 450 |
| Spindle Taper | BT40-150 |
| No. of Spindles | Single |
| Type | Horizontal |
| Weight (t) | 8 |
| Positioning Accuracy (mm) | ±0.005 |
| Repeatability (X/Y/Z) (mm) | ±0.004 |
| Range of Spindle Speed (r.p.m) | 1-8000 |
| Max. Table Load (kg) | 600 |
| Min. Time of Tool Change (s) | 2 |
| Tool Magazine Capacity | 24 |
| Voltage | 220V/380V |
| CNC Control System | FANUC |
| Rapid Feed Speed (mm/min) | 1-10000 |
