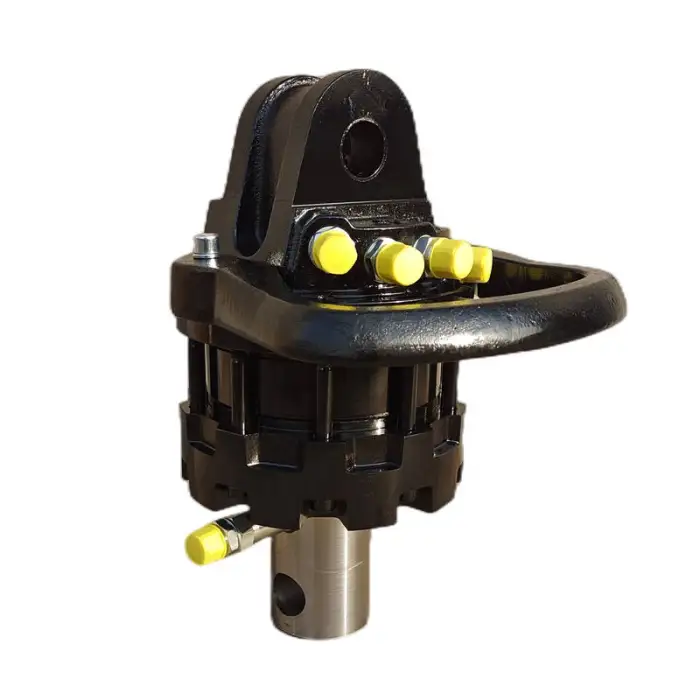

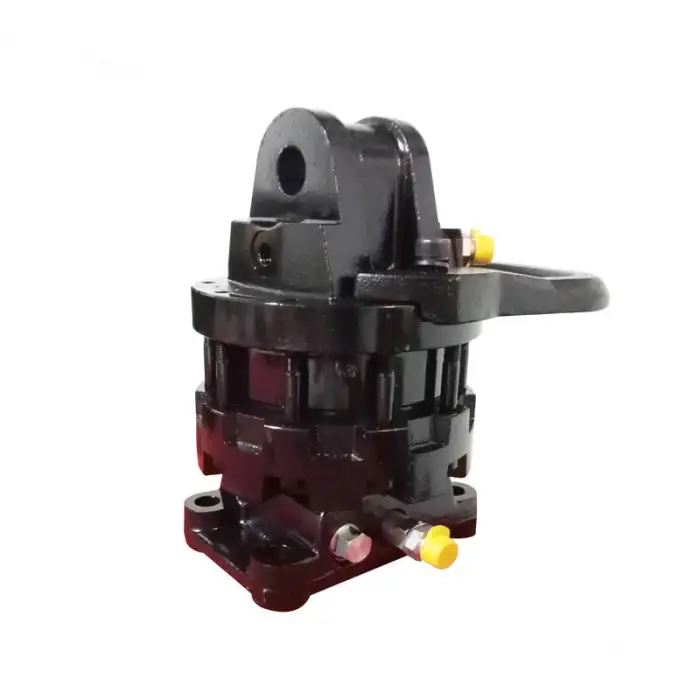

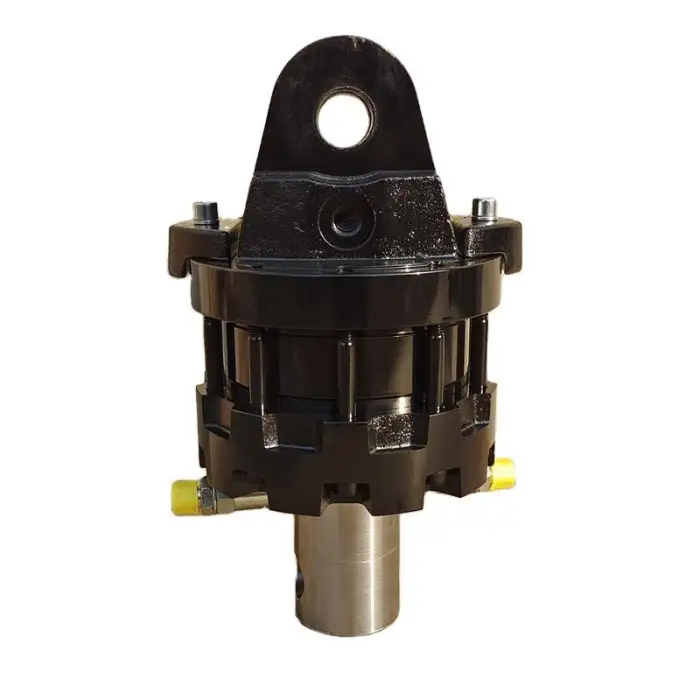

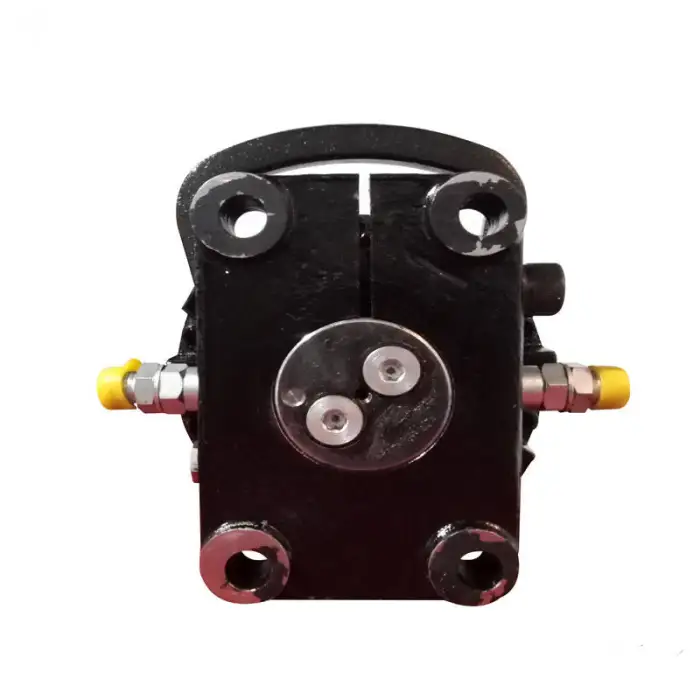

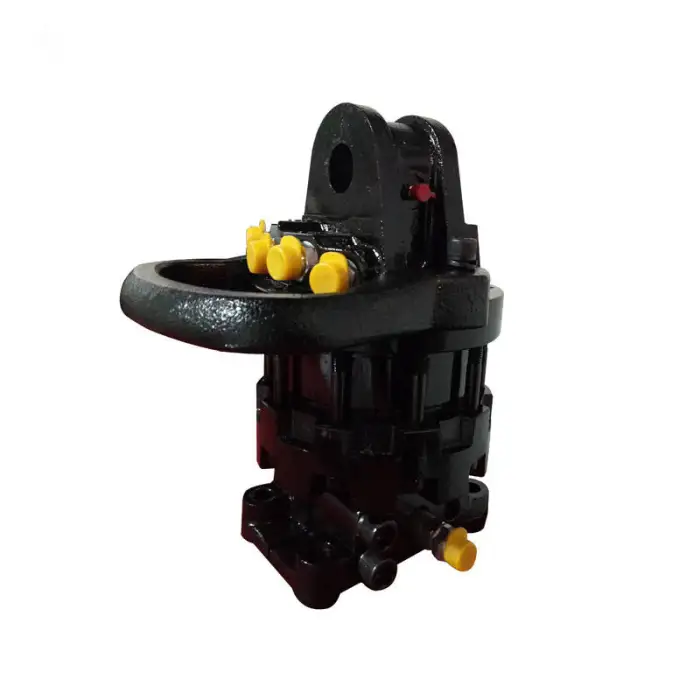

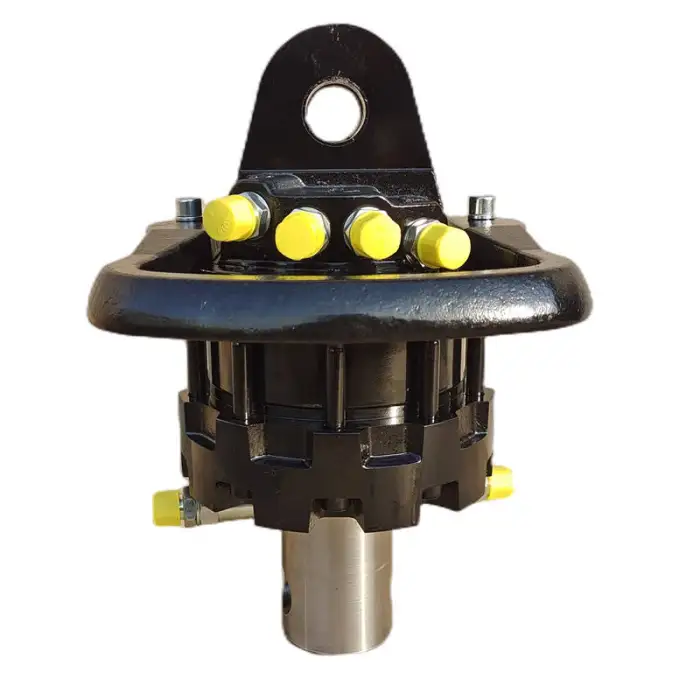

The GR60AF Hydraulic Grapple Rotating Motor weighs 45 kg (99 lb).
The GR60AF is designed specifically for 5-ton excavators.
Yes, the GR60AF is CE certified, ensuring it meets strict safety and performance standards.
The maximum working pressure for the rotator port is 25 MPa (3625 psi).
The torque output of the GR60AF motor is 1800 Nm (1328 lb-ft) at 25 MPa (3625 psi).
The recommended oil flow for the GR60AF is 25 L/min (6.6 US gal/min).
The static axial load capacity is +60 kN (13,491 lbf) / –50 kN (11,242 lbf) and the dynamic axial load capacity is +30 kN (6,745 lbf) / –25 kN (5,621 lbf).
Yes, the GR60AF is built to handle tough jobs with its high load capacities and robust design.
The GR60AF is ideal for excavation and demolition tasks, handling heavy loads, landscaping, forestry work, material handling, and general-purpose grappling and lifting jobs.
The unlimited rotation feature enhances maneuverability, allowing for better control and flexibility during operations.
The motor includes a rotator port (R), grapple/tool open port (G), and grapple/tool close port (G) with specific pressure ratings.
Yes, the GR60AF is versatile and can be used for material handling in various industries.
Regular maintenance includes checking oil levels, inspecting for leaks, and ensuring that connections are secure.
Replacement parts for the GR60AF can typically be found through authorized dealers or the manufacturer.
Installation can vary based on your excavator model; it is recommended to consult the user manual or a professional for proper installation.
