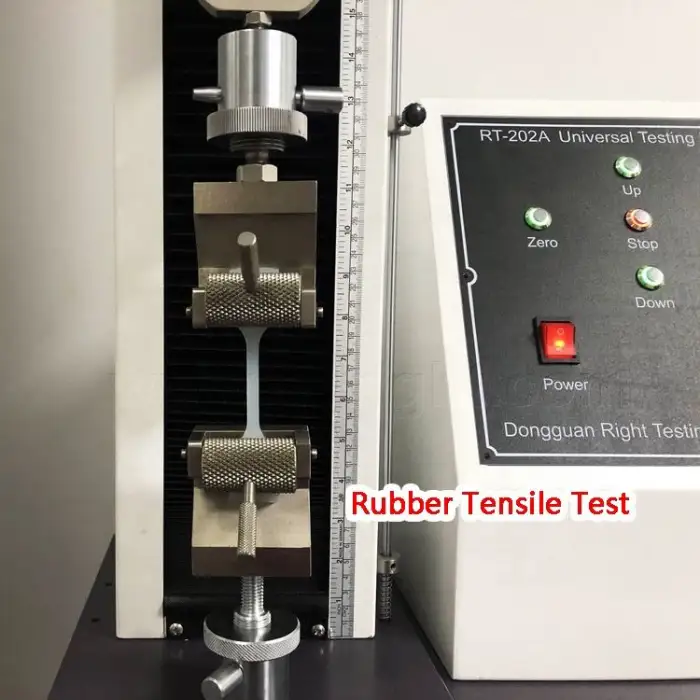

The tester is designed to measure the tensile and compressive strength of various materials, including fabrics and plastics.
The maximum load capacity of the Fabric Plastic Polymer Tensile Tester is 2KN.
Yes, the effective tensile stroke can be customized up to 500MM.
The testing speed range is adjustable from 0.001 to 200mm/min, with an option for 1000mm/min.
The tester has a crossbeam displacement accuracy of ±0.1 mm.
The machine includes electronic-limit protection for safe operation.
Yes, it is suitable for educational purposes in engineering and material testing labs.
The machine is equipped with a Delta Servo motor for precise operation.
The power supply requirement is 220 V.
Applications include testing tensile strength of fabrics and plastics, measuring compressive strength, quality control in manufacturing, and research in material sciences.
The user-friendly interface allows you to adjust the testing speed easily according to your requirements.
The accuracy of displacement tolerance is ±0.5% / ±0.2%.
Yes, it is ideal for laboratories and quality control environments due to its accuracy and reliability.
The maximum tensile space of the machine is 550 mm.
Please check with the manufacturer or supplier for warranty details as they may vary.
