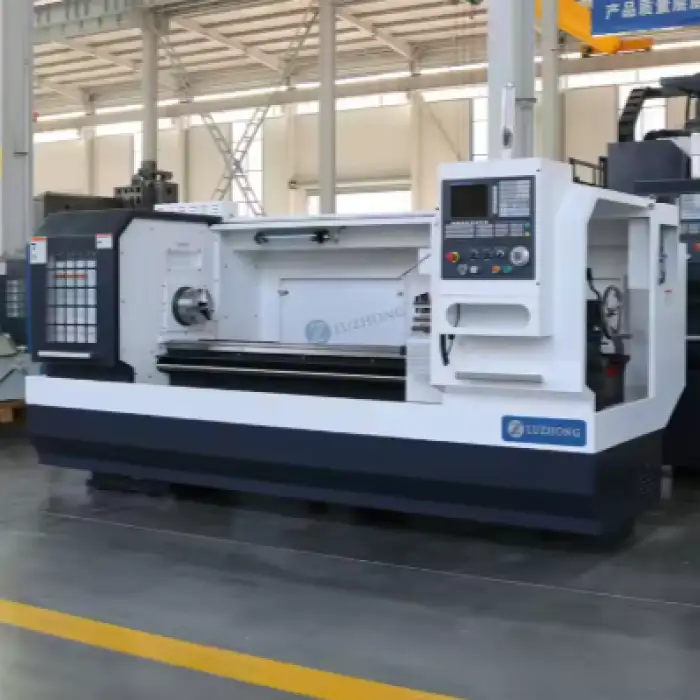

The CK6140S CNC Automatic Horizontal Lathe Machine is a powerful and efficient tool designed for precision metal machining. With its flat bed structure and advanced GSK control system, this lathe machine ensures high accuracy and repeatability. It is perfect for medium-duty tasks and can handle workpieces up to 300 kg, making it an excellent choice for various industrial applications.
| Attribute | Details |
|---|---|
| Type | Horizontal |
| Max. Length of Workpiece (mm) | 1000 mm |
| Machining Capacity | Medium Duty |
| Max. Weight of Workpiece (kg) | 300 |
| No. of Spindles | Single Phase |
| Number of Axes | 2 |
| Travel (X Axis) (mm) | 200 |
| Travel (Z Axis) (mm) | 1500 |
| Positioning Accuracy (mm) | ±0.002 |
| Repeatability (X/Y/Z) (mm) | ±0.001 |
| Voltage | 380V/50HZ |
| Tool Post Stations | 4 |
| Weight (kg) | 2100 |
| Range of Spindle Speed (r.p.m) | 10 - 1600 r.p.m |
| Cutting Torque | 0 |
| Width of Bed (mm) | 360 mm |
| Dimension (L*W*H) | 2200/2500/3000*1500*1650 mm |
| Brand Name | Luzhong Machine Tool |
| Model Number | CK6140 |
| CNC Control System | GSK |
