CE ISO13485 Approved Low-Dose Digital Mammography X-ray Machine System
- Section : Medical Supplies
- Category : Radiology Equipment & Accessories
- SKU : 1600758562803
Description
Hello, my friend, welcome to our store,I am wendy from China, if you need other models of this product, please contact me, I will send the product link for you to buy! Meanwhile, you can consult me first if you think the shipping cost is unreasonable.And welcome to add my WHATSAPP (+8618163698243) Email:[email protected]

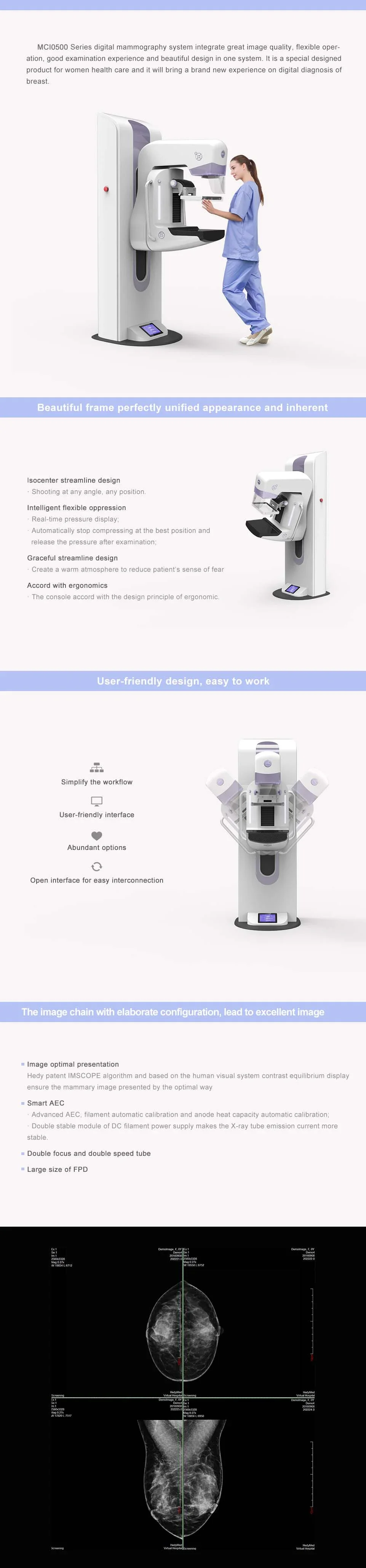

Radiological Apparatus Diagnosis Machine Full Feld Digital Mammography Machine
MCI0500
Product Description
Features
Our MCI0500 3d digital x ray mammography machine is the digital mammography specialists, it is used to the digital diagnostic mammogram, MeCan Medical is the best superior digital x ray mammography manufacturer near me.
1.Pitch function
2.Point-Pressure Magnification Photography
3.Tungsten target tube reduces 30%~60% radiation exposure.
4.AI assisted mammography diagnosis system
5.Amorphous selenium detector: the groups of calcification points showing increases from 3 to 6.
6. With wheelchair mode
7. Tube Type: Molybdenum
Specifications
| No. | Parameters and performance | |
| 1 | Basic function | |
| 1.1 | Application: it is specially used for human breast tissue photography to obtain tissue images for breast disease diagnosis and breast cancer screening; | |
| 2 | Rack system | |
| 2.1 | Frame structure: vertical C-arm type, | |
| 2.2 | C-arm rotation range + 195 ° to - 155 ° | |
| 2.3 | Vertical movement range of C-arm: 630mm-1440mm | |
| 2.4 | The C-arm can be locked at any position in the whole stroke | |
| 2.5 | The rack display screen can display the current position and position information to be photographed, and has the function of one key in place, which can switch the preset position with one key | |
| 2.6 | Distance between focus and image receiving surface (FID): 660mm | |
| 3 | High voltage generator assembly (imported) | |
| 3.1 | Maximum output power: 5KW | |
| 3.2 | Output voltage range: 20-40kv | |
| 3.3 | Output current range: 10ma-160ma | |
| 3.4 | Loading time range: 0.005s-10s | |
| 3.5 | Current time product regulation range: 0.5-560mas | |
| 3.6 | With exposure control system, support one key exposure or hand brake exposure. | |
| 4 | X-ray tube assembly (imported) | |
| 4.1 | Double speed rotating anode | |
| 4.2 | Nominal tube voltage: 40kV | |
| 4.3 | Anode heat capacity: 300KHU | |
| 4.4 | Anode rotating speed: 10000 rpm | |
| 4.5 | Anode material: Molybdenum | |
| 4.6 | Nominal focus size: small focus 0.1mm, large focus 0.3mm | |
| 5 | Flat panel detector Component | |
| 5.1 | Imaging medium: amorphous silicon | |
| 5.2 | Imaging size: 240mm × 300mm | |
| 5.3 | Conventional spatial resolution: 7.0lp/mm | |
| 5.4 | Pixel matrix: 4096*3072 | |
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 03 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the primary use of the CE ISO13485 Approved Low-Dose Digital Mammography X-ray Machine System?
This machine is specially designed for human breast tissue photography, providing high-quality images for breast disease diagnosis and breast cancer screening.
2. How does this digital mammography machine reduce radiation exposure?
The machine features a tungsten target tube that reduces radiation exposure by 30% to 60% during imaging.
3. What advanced features does the MCI0500 digital mammography machine offer?
Key features include AI-assisted mammography diagnosis, a pitch function, point-pressure magnification photography, and a wheelchair mode for accessibility.
4. What is the imaging medium used in this digital mammography system?
The imaging medium is made from amorphous silicon, which provides excellent image quality and spatial resolution.
5. What is the maximum output power of the high voltage generator assembly?
The maximum output power of the high voltage generator assembly is 5KW.
6. Can the C-arm of the machine be locked in place?
Yes, the C-arm can be locked at any position within its entire movement range for precise imaging.
7. What is the pixel matrix resolution of the flat panel detector?
The flat panel detector has a pixel matrix resolution of 4096 x 3072.
8. Is there a function for one-key exposure in this mammography machine?
Yes, the machine supports one-key exposure and also offers hand brake exposure for flexibility.
9. What is the significance of the 'wheelchair mode' feature?
The wheelchair mode feature allows easier access for patients with mobility challenges, making the machine more user-friendly.
10. What is the vertical movement range of the C-arm?
The vertical movement range of the C-arm is from 630mm to 1440mm.
11. How can I contact support for additional models or inquiries?
You can reach out to Wendy via WhatsApp at +8618163698243 or via email at [email protected] for any additional models or inquiries.
12. Does the machine have a feature for displaying position information?
Yes, the rack display screen shows the current position and position information to be photographed, along with a one-key function to switch preset positions.
13. What is the nominal focus size of the X-ray tube?
The nominal focus size of the X-ray tube is 0.1mm for small focus and 0.3mm for large focus.
14. What is the output voltage range of the high voltage generator?
The output voltage range of the high voltage generator is between 20kV and 40kV.
15. Is this mammography machine suitable for hospitals and clinics?
Yes, this machine is ideal for hospitals and clinics looking for a reliable and efficient solution for breast imaging.
