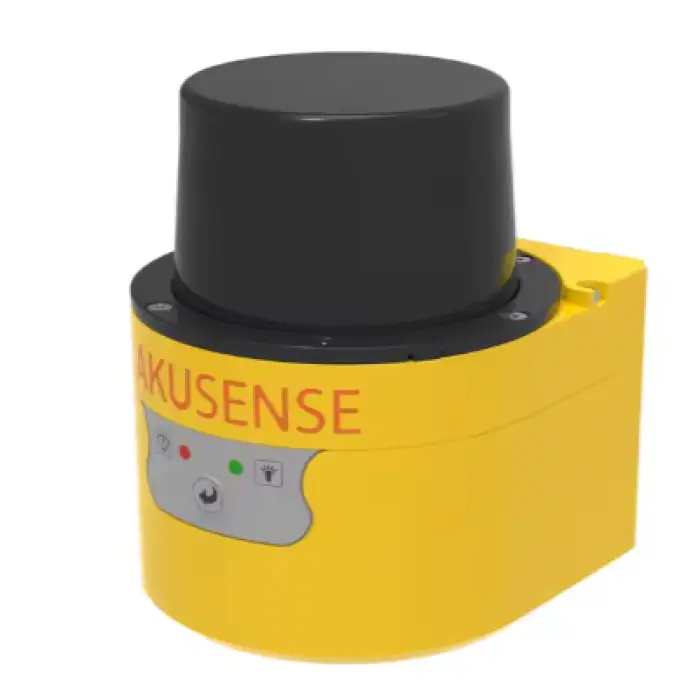

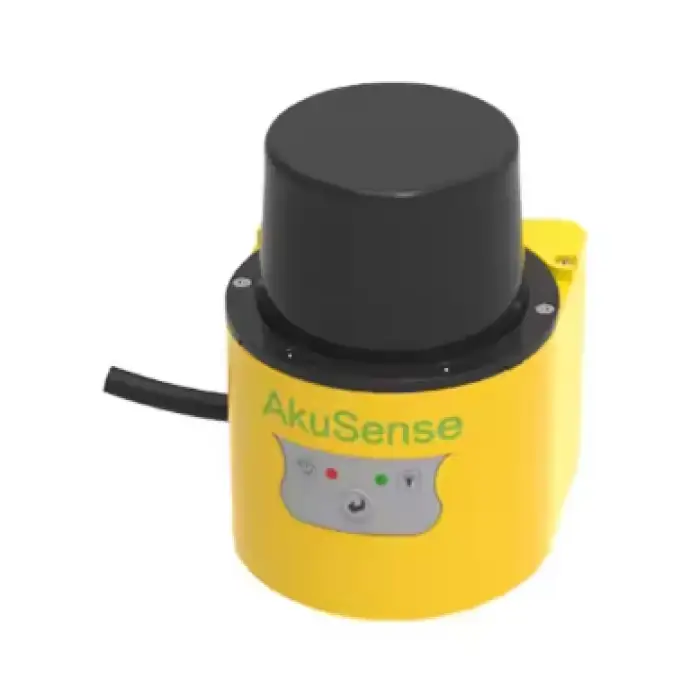

The AkuSense High Precision Radar Sensor is a reliable tool for distance measurement and safety protection. With its advanced Lidar technology, this sensor provides accurate measurements across a wide range, making it perfect for various applications. Its long sensing distance and precision make it a valuable asset in many industries.
| Working environment | Indoor / outdoor |
| Light source | Infrared laser (905nm) |
| Laser safety Class | Class 1 (GB 7247.1-2012, human eye safety) |

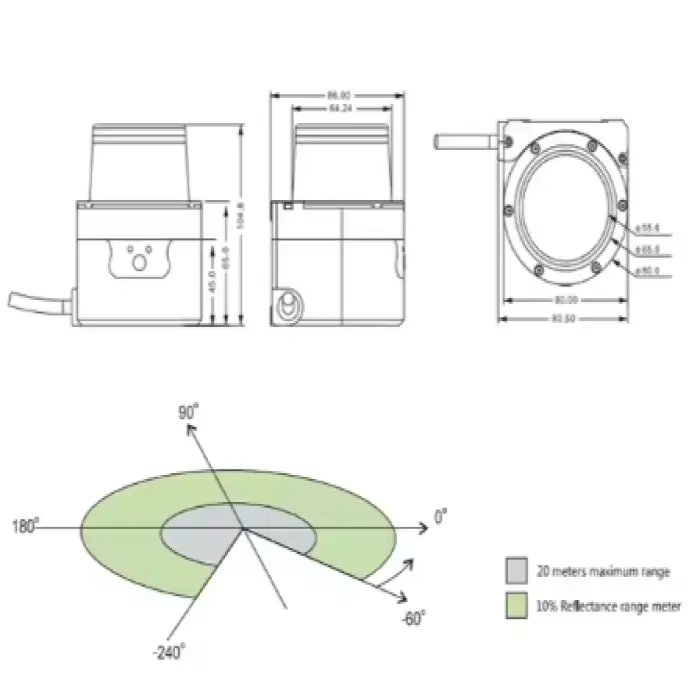

| Scan angle range | 300° (-60°~+240°) |
| Scanning frequency | 25Hz |
| Scan angle resolution | 0.5° |
| Measuring range | 0.1m~20m |
| 10% reflectance range | 15m |
| Built-in application | Regional monitoring |
| Operating Voltage | 9V~28V DC |
| Power consumption | 5W |
| Shell Protection Class | IP65 (GB 4208-2008) |
| Weight | 0.6Kg |
| Dimension(L x W xH) | 83.5x85x04.88(mm) |
| Working temperature range | -25℃~+50℃ |
| Storage temperature range | -30℃~+70℃ |
| Ambient illumination range | ≤70,000lux |
This AkuSense High Precision Radar Sensor is ideal for safety protection, offering reliable distance measuring capabilities. With its TOF principle, it delivers highly accurate readings, even in challenging environments. Its wide scanning angle and long sensing range ensure broad coverage, while the IP67 rating ensures durability in various conditions.
Advantages of AS-21C：
1）LiDAR Scanner for distance detection ;
2）Laser safety level: class 1, 300° detaction range;
3）Up to IP65 degree of protection;
4）Long time stable excellent performance with high sensitivity.
