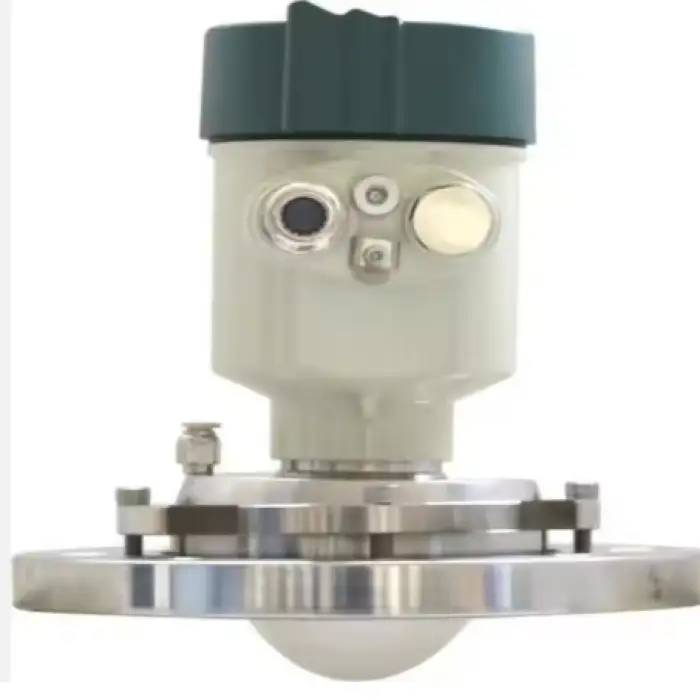

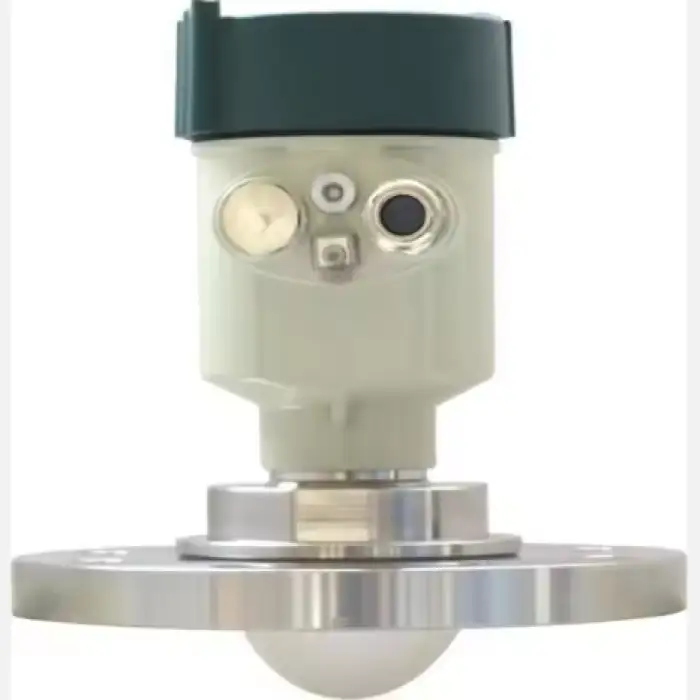

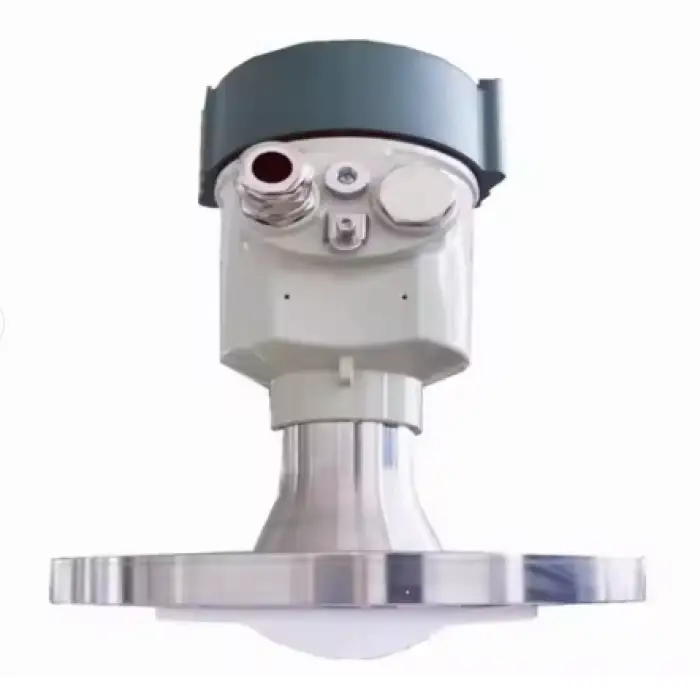

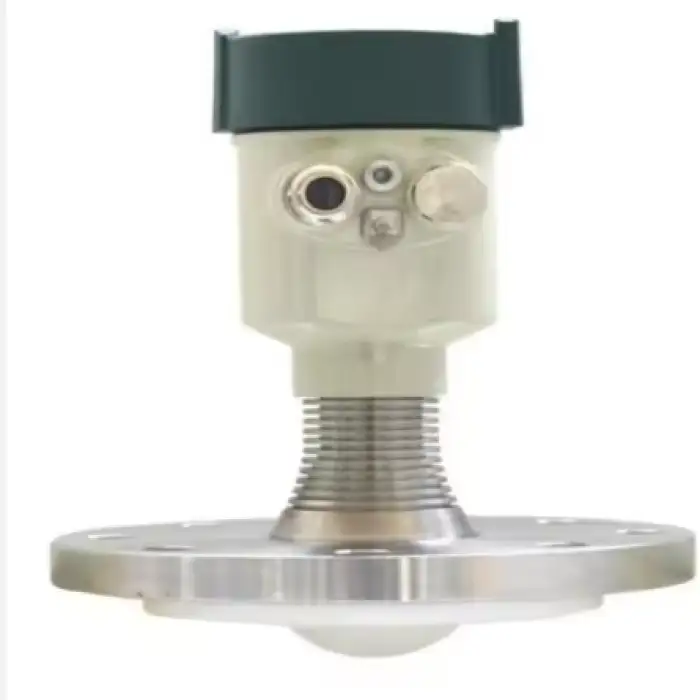

The 80GHz Radar Level Meter Level Sensor is a high-performance solution for precise level measurement in challenging industrial environments. With its advanced radar technology and long measuring range, this sensor is ideal for monitoring the levels of materials like coal, water, and other liquids in bins, reservoirs, and watercourses.
| Parameter | BGT-RD800 |
| Frequency | 76GHz-81GHz, 5GHz FMCW bandwidth |
| Measuring range | 120m |
| Measurement accuracy | ±1mm |
| Power supply | 24VDC; 220VAC |
| Signal output | 4-20mA or RS-485 |
| Installation method | Thresd or flange |
| Beam angle | 3°, 8° |
| Process temperature | -40℃-220℃ |
| Process pressure | -0.1mpa-2.0mpa |
| Enclosure | Aluminum alloy; stainless steel |
| Dielectric constant range | ≥2 |
| Communication | MODBUS; HART optional |
| Blind zone | 10cm |
| Antenna type | Lens antenna/anti-corrosive antenna/flange isolated by quartz |
| Product size | Φ100*270mm |
| Cable entry | M20*1.5 |
| Recommanded cable | AWG18 or 0.75mm2 |
| Protection class | IP68 |
| Model | BGT-RD800-B |
| Frequency range | 76~81GHz |
| Application range | Strong dust, solid, block, powder |
| Measuring range | 120m |
| Signal output | 4~20mA/RS485 |
| Process connection | Thread,Flange |
| Medium temperature | -30~100℃ |
| Process pressure | -0.1~0.3mpa |
| Measurement accuracy | ±1mm |
| IP rating | IP68 |
| Beam angle | 3° |
| Shell material | Aluminum casting/stainless steel |
| Model | BGT-RD800-A |
| Frequency range | 76~81GHz |
| Application range | slightly corrosive liquid, stirring, water vapor condensation |
| Measuring range | 120m |
| Signal output | 4~20mA/ RS485 |
| Process connection | Thread,Flange |
| Medium temperature | -30~100℃ |
| Process pressure | -0.1~0.3mpa |
| Measurement accuracy | ±1mm |
| IP rating | IP68 |
| Beam angle | 3° |
| Shell material | Aluminum casting/stainless steel |
| Model | BGT-RD800-C |
| Frequency range | 76~81GHz |
| Application range | Slightly corrosive liquid, stirring, condensation |
| Measuring range | 120m |
| Signal output | 4~20mA/RS485 |
| Process connection | Thread, Flange |
| Medium temperature | -30~100℃ |
| Process pressure | -0.1~0.3mpa |
| Measurement accuracy | ±1mm |
| IP rating | IP68 |
| Beam angle | 8° |
| Shell material | Aluminum casting/stainless steel |
| Model | BGT-RD800-D |
| Frequency range | 76~81GHz |
| Application range | Strong corrosive liquid, stirring, water vapor, condensation |
| Measuring range | 120m |
| Signal output | 4~20mA/RS485 |
| Process connection | Thread, Flange |
| Medium temperature | -30~100℃ |
| Process pressure | -0.1~0.1mpa |
| Measurement accuracy | ±1mm |
| IP rating | IP68 |
| Beam angle | 3° |
| Shell material | Aluminum casting/stainless steel |
The 80GHz Radar Level Meter Level Sensor is an ideal solution for industrial applications requiring precise and reliable level measurement in challenging conditions. With its high accuracy, wide measuring range, and durable construction, it provides excellent performance for monitoring coal bins, reservoirs, and watercourses.
| Model | BGT-RD800-E |
| Frequency range | 76~81GHz |
| Application range | High temperature environment, strong corrosive liquid, stirring, water vapor, condensation |
| Measuring range | 120m |
| Signal output | 4~20mA/RS485 |
| Process connection | Thread, Flange |
| Medium temperature | -40~220℃ |
| Process pressure | -0.3~2.0mpa |
| Measurement accuracy | ±1mm |
| IP rating | IP68 |
| Beam angle | 3° |
| Shell material | Aluminum casting/stainless steel |
| Model | BGT-RD800-F |
| Frequency range | 76~81GHz |
| Application range | Strong corrosive liquid, stirring, water vapor, condensation |
| Measuring range | 120m |
| Signal output | 4~20mA/RS485 |
| Process connection | Thread, Flange |
| Medium temperature | -30~100℃ |
| Process pressure | -0.1~2.0mpa |
| Measurement accuracy | ±1mm |
| IP rating | IP68 |
| Beam angle | 3° |
| Shell material | Aluminum casting/stainless steel |
