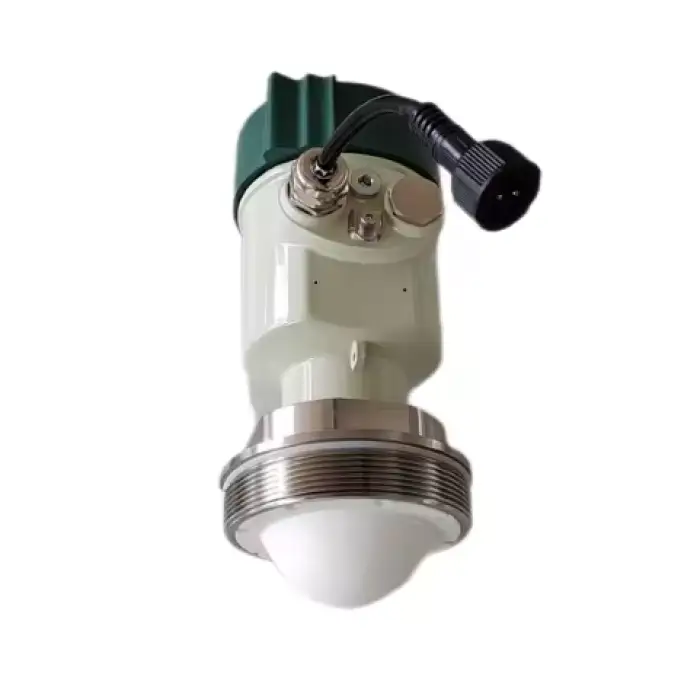

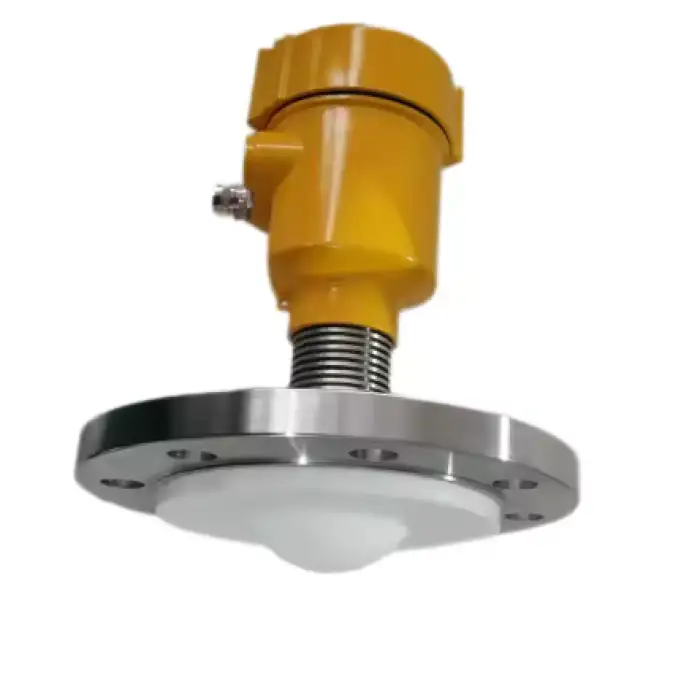

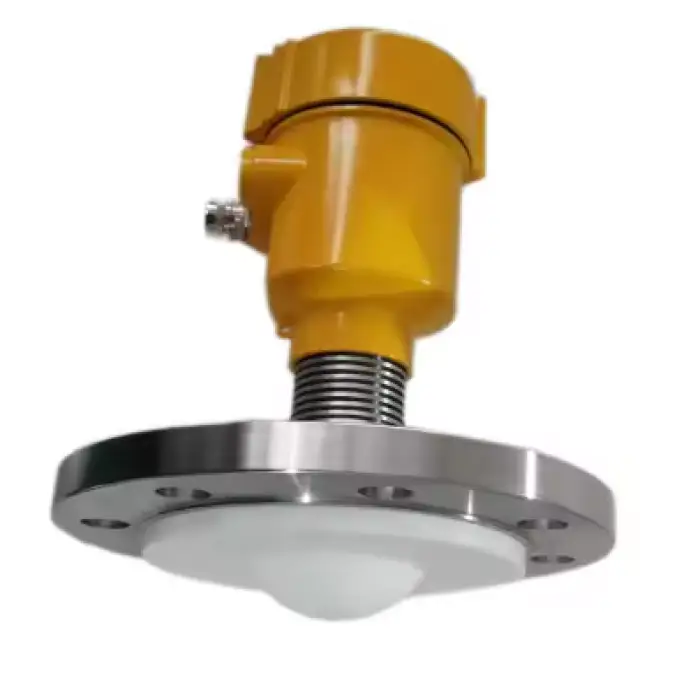

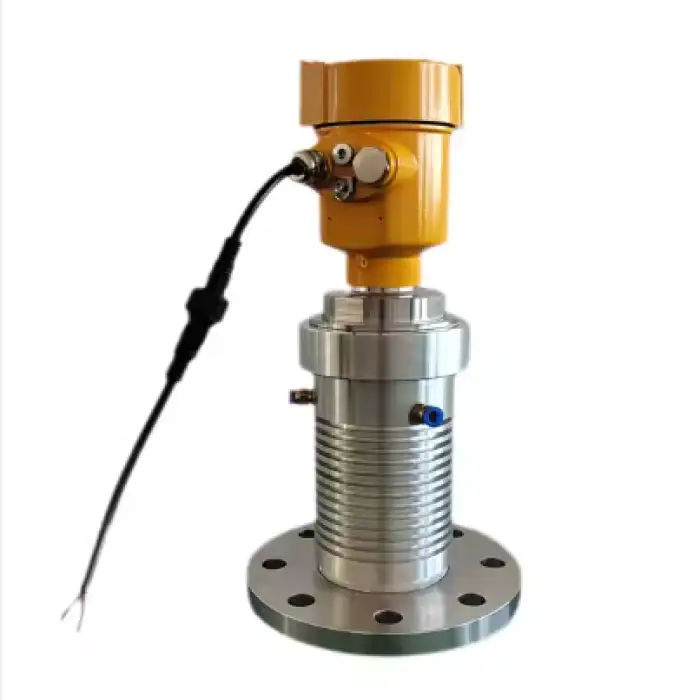

80g 120g Radar Level Meter Gauge Water Level Sensor Radar Level Transmitter



The 80g 120g Radar Level Meter Gauge is a high-precision radar level transmitter designed for accurate and reliable measurement of water levels and other liquids.

 Featuring advanced technology, it offers exceptional performance in challenging industrial environments.



Key Features:



  • High-Precision Measurement: With a measurement accuracy of ±1mm, the radar sensor ensures precise and dependable level monitoring.
  • Wide Frequency Range: Operates within the 76GHz to 81GHz range, utilizing 5GHz FMCW bandwidth for accurate data collection.
  • Versatile Output Signals: The device supports multiple output options including 4-20mA and RS-485 for easy integration into various systems.
  • Flexible Communication Options: Compatible with MODBUS and HART protocols for versatile communication with different monitoring systems.
  • Beam Angle: Available in 3° or 6° beam angles to suit different measurement scenarios.
  • Durable Enclosure: Constructed with aluminum alloy or stainless steel for robust protection in harsh environments.
  • Fault Output: Includes fault outputs (3.8mA, 4mA, 20mA, 21mA, and hold) to ensure consistent monitoring of system health.
  • Wide Temperature and Humidity Tolerance: Operates in temperatures from -40°C to +80°C with a humidity tolerance of ≤95% RH.



Technical specifications

Frequency76GHz ~ 81GHz, 5GHz FMCW bandwidth
Measuring rangex0: 0.3 m ~ 60m
x1: 0.08m~30m
x2: 0.6m ~ 120m
Measurement accuracy±1mm
Beam angle3°/6°
Minimum measured dielectric constant>=2
Power15~28VDC
Communication2x: MODBUS
3x: HART/Series
Signal output2x: 4 ~ 20mA or RS-485
3x: 4~20mA
Fault output3.8mA, 4mA, 20mA, 21mA, hold
Field operation / programming128 × 64 dot matrix display / 4 buttons
PC software
Bluetooth
humidity≤95%RH
EnclosureAluminum alloy, stainless steel
Antenna typeLens antenna/anti-corrosive antenna / flange isolated by quartz
Process temperatureT0:-40~85℃; T1:-40~200℃; T2:-40~500℃; T3:-40~1000℃
Process pressure-0.1~2MPa
Product SizeØ100*270mm
Cable entryM20*1.5
Recommended cablesAWG18 or 0.75mm²
Protection classIP67
Explosion-proof gradeExdiaIICT6
Installation methodThread or flange
Weight2.480Kg/2.995Kg
Packing box size370*270*180mm



This radar level transmitter is ideal for precise water level measurements, offering a reliable and durable solution for industrial and environmental applications.
