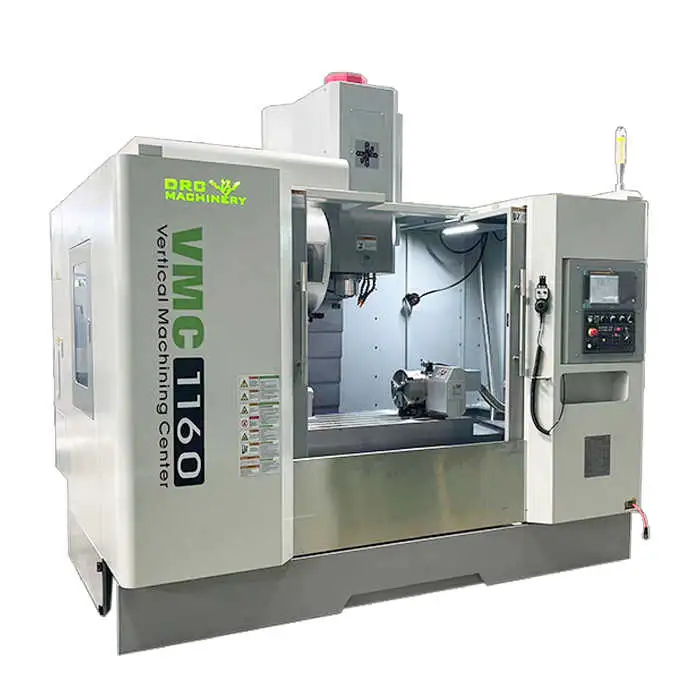

The 4 Axis Machine Taiwan VMC1160 CNC Vertical Machining Center is a powerful tool designed for precision milling. This machine is perfect for various machining tasks. It combines advanced technology with ease of use, making it suitable for both beginners and experienced operators. The VMC1160 offers high accuracy and reliability for all your milling needs.
| Attribute | Details |
|---|---|
| Table Size (mm) | 1100 x 500 |
| Table Travel (X) (mm) | 1050 |
| Table Travel (Y) (mm) | 500 |
| Spindle Taper | BT40 |
| Number of Spindles | Single |
| Type | Vertical |
| Weight (t) | 5.8 |
| Table Travel (Z) (mm) | 500 |
| Positioning Accuracy (mm) | ±0.005 |
| Repeatability (X/Y/Z) (mm) | ±0.008 |
| Range of Spindle Speed (r.p.m) | 50 - 8000 |
| Max. Table Load (kg) | 600 |
| Min. Time of Tool Change (s) | 2 |
| Tool Magazine Capacity | 24 |
| Voltage | 380V / 50HZ |
| Rapid Feed Speed (mm/min) | 0 - 1000 |
| Dimension (L*W*H) | 3700 x 2750 x 2800 |
| CNC Control System | GSK |
The 4 Axis Machine Taiwan VMC1160 CNC Vertical Machining Center is your ideal partner for precision and efficiency in milling tasks. Upgrade your workshop today!
