The maximum vertical conveying distance is 110 meters.
The pump has a productivity of 50 cubic meters per hour.

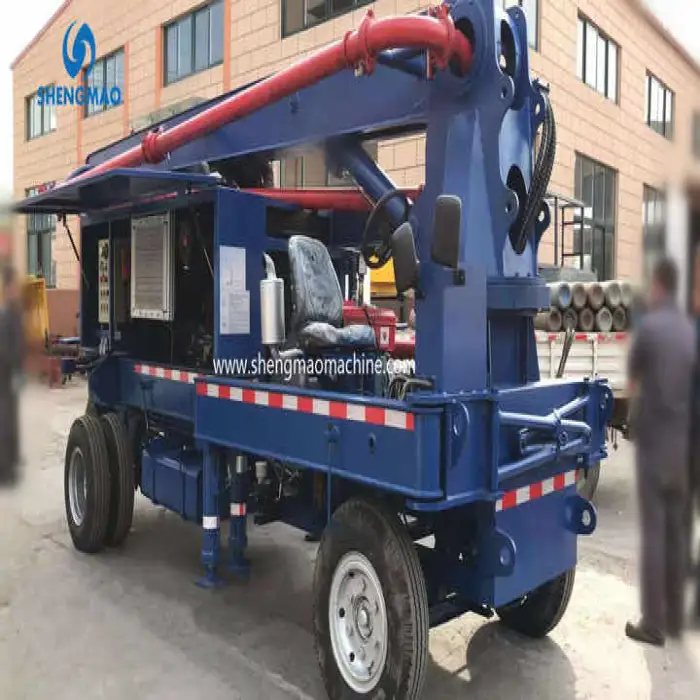

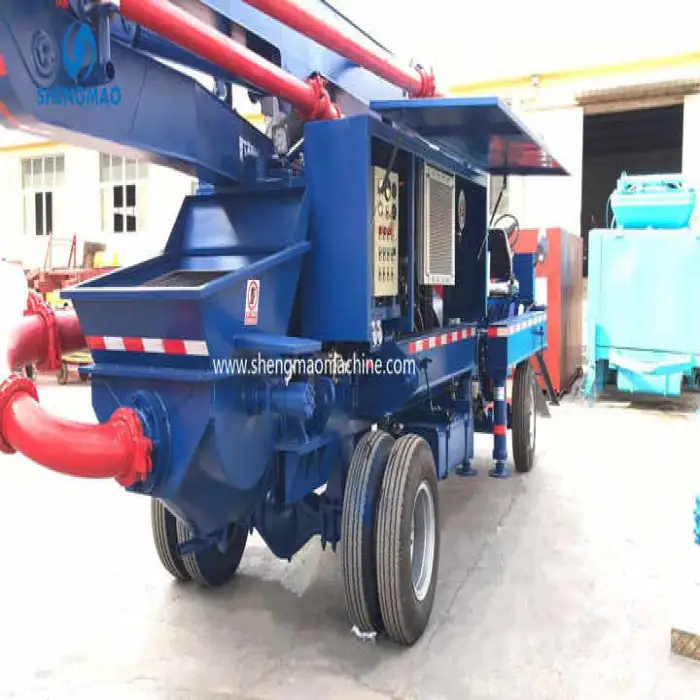

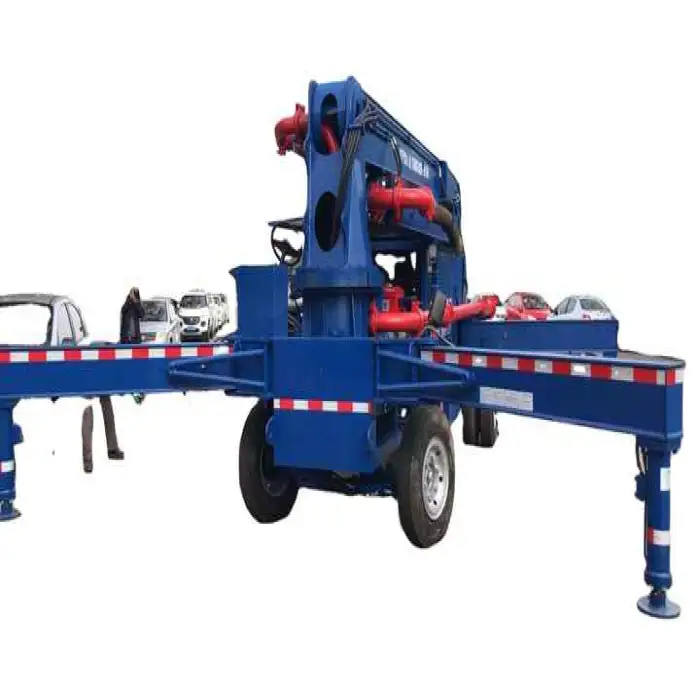

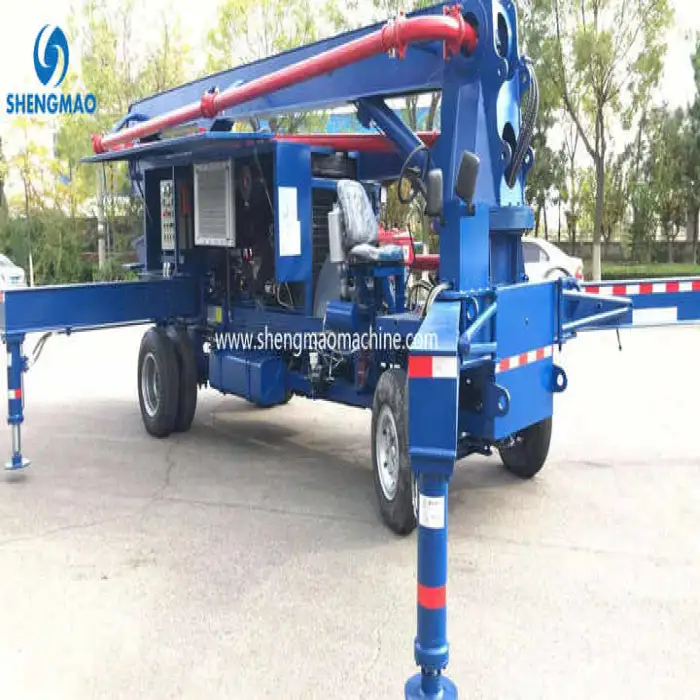

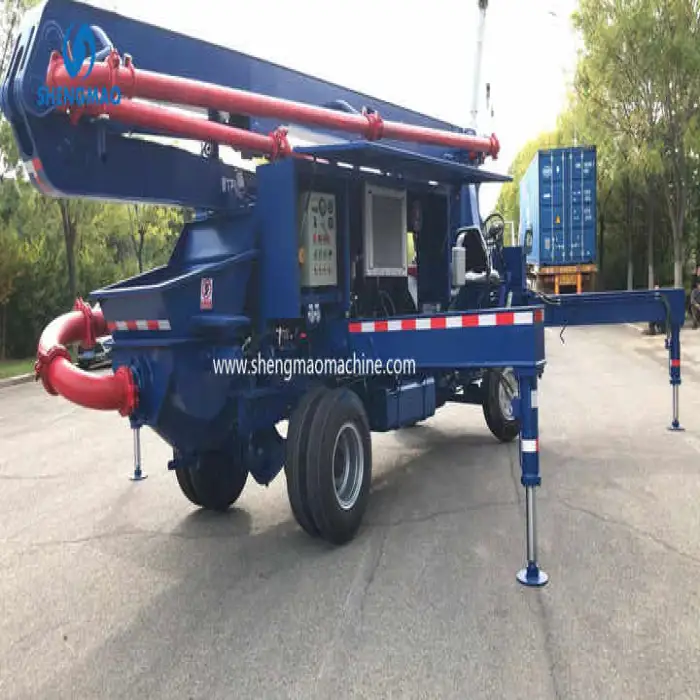

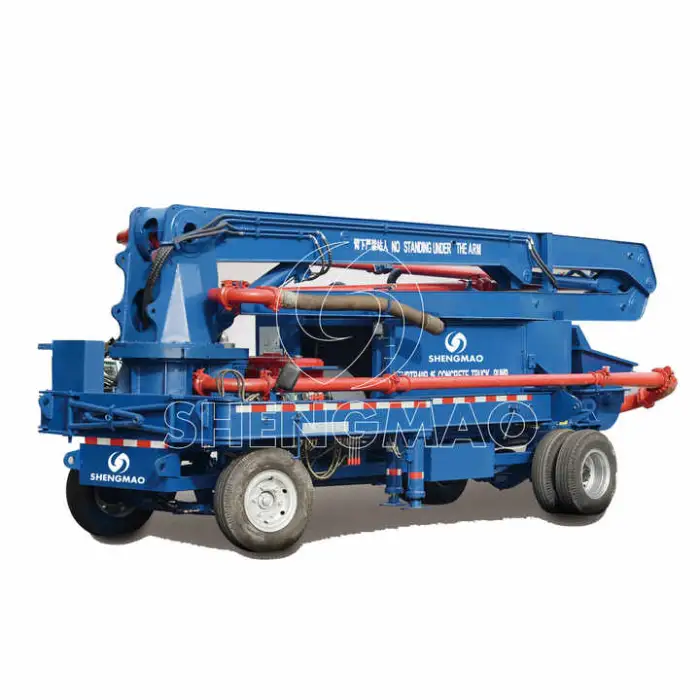

The 21 m Mini Small Portable Mobile Concrete Boom Pump operates on diesel power.
The maximum horizontal conveying distance is 500 meters.
The total weight of the concrete pump truck is 8500 kg.
The maximum concrete pumping pressure is 10 MPa.
The hopper capacity is 500 liters with a feeding height of 1300 mm.
The maximum placing height is 22 meters and the maximum placing radius is 20 meters.
The outlet diameter of the concrete pump is 150 mm.
Key features include a fully hydraulic system for smooth operation, compact size for easy transportation, and high productivity.
It is ideal for construction sites, high-rise building projects, road construction and repair, bridge construction, and various infrastructure projects.
The electrical engineering power is 82 kW.
The rotating speed of the concrete pump is 2200 r/min.
Yes, its compact size makes it easy to transport to various job sites.
Yes, the design of the pump allows it to deliver concrete to hard-to-reach places.
