180T Industrial Die Cast Machine Chamber Zinc Die Casting Machine
- Section : Machinery
- Category : Metal & Metallurgy Machinery
- SKU : 1600289522964

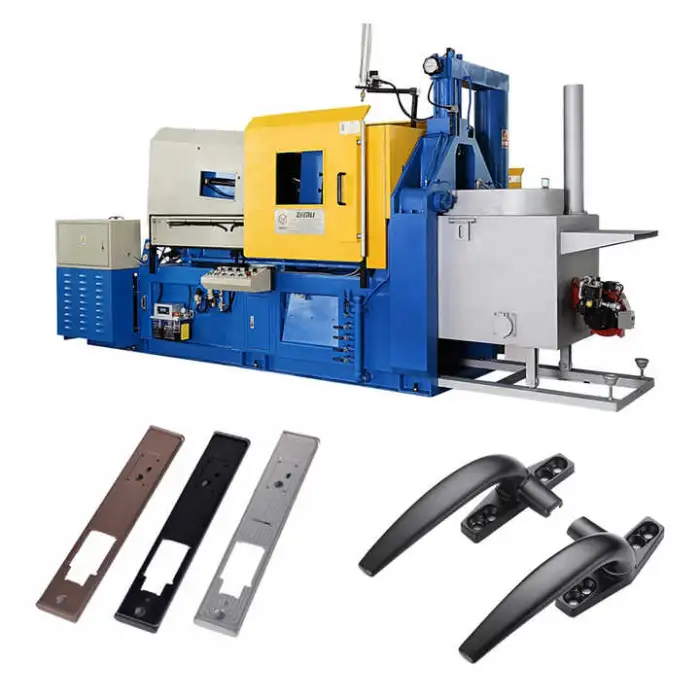

180T Industrial Die Cast Machine - Chamber Zinc Die Casting Machine
The 180T Industrial Die Cast Machine is a reliable and efficient hot chamber die casting machine designed for high productivity. This machine is perfect for producing zinc alloy die castings with great accuracy and speed. Ideal for various industrial applications, it ensures quality and durability in every casting process.
Specifications
| Attribute | Details |
|---|---|
| Machine Type | Hot Chamber Die Casting Machine |
| Power (kW) | 18.5 |
| Weight (kg) | 6200 |
| Voltage | As Per Your Industrial Voltage |
| Max. Thickness of Die Block (mm) | 505 |
| Min. Thickness of Die Block (mm) | 190 |
| Ejection Force (kN) | 90 |
| Ejection Stroke (mm) | 88 |
| Dimension (L*W*H) | 4700*1600*2030 mm |
| Die Stroke (mm) | 385 |
| Tie Bar Diameter (mm) | 85 |
| Crucible Capacity (Zn) | 400 kg |
| Hydraulic Pressure | 14 MPa |
| Shot Position | 0, -80 |
Key Features
- High productivity for efficient casting.
- Robust and durable design for long-lasting performance.
- Equipped with advanced PLC for precise control.
- Engineered for easy maintenance and serviceability.
- Capable of producing complex shapes with accuracy.
Applications
- Manufacturing motorcycle and car accessories.
- Producing household appliance casings.
- Creating handles and other intricate metal parts.
- Making medals and decorative items.
The 180T Industrial Die Cast Machine is your go-to solution for high-quality zinc die casting. Its reliable performance and versatile applications make it a valuable asset to any manufacturing process.
Product Info Gallery
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 04 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What type of die casting machine is the 180T Industrial Die Cast Machine?
It is a hot chamber zinc die casting machine designed for high-productivity zinc alloy castings.
2. What are the main technical specifications (power, weight, dimensions)?
Power: 18.5 kW; Weight: 6200 kg; Dimensions (L*W*H): 4700*1600*2030 mm.
3. What materials can this machine process?
It is engineered primarily for zinc alloys (e.g., Zamak family). Hot chamber design makes it ideal for low-melting-point, iron-phobic alloys such as zinc.
4. What is the crucible capacity for zinc?
The crucible capacity is 400 kg of zinc.
5. What are the die block thickness limits supported?
Maximum die block thickness: 505 mm; Minimum die block thickness: 190 mm.
6. What are the ejection specifications?
Ejection force: 90 kN; Ejection stroke: 88 mm.
7. What is the hydraulic pressure and other motion specs?
Hydraulic pressure: 14 MPa; Die stroke: 385 mm; Tie bar diameter: 85 mm; Shot positions supported: 0° and -80°.
8. Can the machine be supplied for my local voltage?
Yes — the machine is supplied 'As Per Your Industrial Voltage'. Confirm your local mains voltage and phase with sales so they can configure the electrical system accordingly.

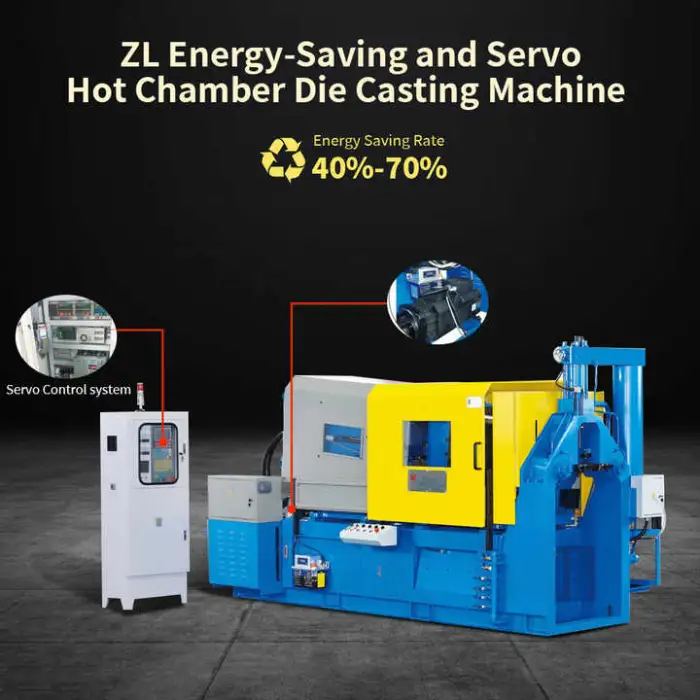

9. What control system does the machine use?
It is equipped with an advanced PLC for precise process control, monitoring and repeatability.
10. What industrial applications is this machine suitable for?
Typical applications include motorcycle and car accessories, household appliance casings, handles and other intricate metal parts, medals and decorative items.
11. What safety and guarding should be provided?
Standard safety features include PLC interlocks and emergency stop provisions. Additional guarding, light curtains or fences and operator PPE should be provided per local regulations and the machine manual.
12. What are the installation requirements?
Requires a prepared floor/foundation capable of supporting the 6200 kg machine and concrete anchoring as recommended. Adequate crane or lifting equipment is needed for placement. Electrical supply must match the configured voltage; provide suitable hydraulic oil and utilities per the installation manual.
13. What maintenance is required and how often?
Routine maintenance includes daily checks (hydraulic oil level, lubrication, melt cleanliness), weekly inspections (fasteners, cooling passages) and periodic service per the manual (hydraulic oil change, PLC backup). Follow the manufacturer maintenance schedule for exact intervals.
14. Are spare parts and after-sales support available?
Yes. Spare parts and after-sales service are available — contact the supplier for parts lists, recommended spares and lead times. They can also arrange commissioning and training.
15. Can the machine be customized for specific tooling or production needs?
Yes. Common customizations include control options, electrical voltage configuration, alternate shot positioning, and adaptations to suit specific molds or part geometries. Discuss requirements with sales/engineering for feasibility and lead time.
