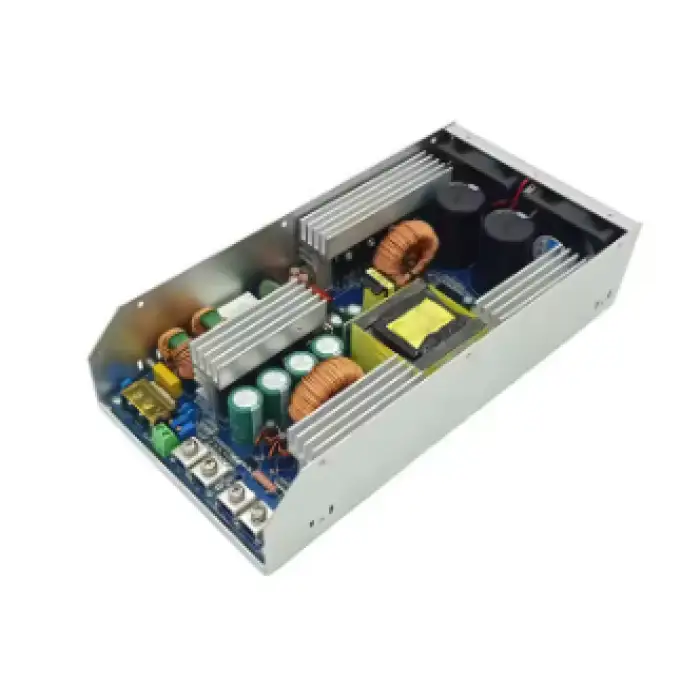

2000W PFC
| MODEL | IPS-PFC2000-24 | IPS-PFC2000-36 | IPS-PFC2000-48 | IPS-PFC2000-60 | IPS-PFC2000-72 | IPS-PFC2000-110 | IPS-PFC2000-150 | |
Output
parameters
| DC output voltage | 24V | 36V | 48V | 60V | 72V | 110V | 150V |
| AC 220V input | Rated output current | 83A | 55.5A | 41.6A | 33A | 27.7A | 18A | 13.3A |
| Rated output power | 2000W | 2000W | 2000W | 2000W | 2000W | 2000W | 2000W | |
| AC 220V input | Rated output current | 62.5A | 41.6A | 31A | 25A | 20.8A | 13.6A | 10A |
| Rated output power | 1500W | 1500W | 1500W | 1500W | 1500W | 1500W | 1500W | |
| conversion efficiency | 88.5% | 90.5% | 91% | 91% | 91.5% | 93% | 93.5% | |
| Ripple (full load) | 200mv | 230mv | 250mv | 250mv | 280mv | 300mv | 350mv | |
| Linear adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load adjustment rate | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Voltage stabilization accuracy | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | |
| Start-up, rise time | 2S/300ms | hold up time:15ms | ||||||
Input parameter
| input voltage | AC 110v-260v (wide voltage adaptive, no conversion required) | ||||||
| AC input frequency | 47-63Hz | |||||||
Input current
(maximum) | Full load 2000W output, using 220VAC input, input current 10A
Full load 1500W output, 15A when using 110VAC input (when using 110V input, the maximum power is limited to 1500W) | |||||||
| power factor | Using AC220V input, when the power supply is 100% full load, the power factor PF value is ≥0.97 (refer to the PF curve diagram below)
Using AC1100V input, when the power supply is 100% full load, the power factor PF value is ≥0.98 (refer to the PF curve diagram below) | |||||||
| Surge current | 220VAC/45A 110VAC/22A | |||||||
Function
| PS-ON | PS-on terminal short circuit: no output voltage of power supply
PS-on terminal open circuit: The power supply has an output voltage Note: PS-on can control the power output voltage on and off. When the output voltage is turned off, the power supply is in the low power standby state (less than 10 watts), and only the auxiliary power supply circuit is working inside. The cooling fan will operate normally, not the power supply of the 220 V input end will be disconnected. | ||||||
| Output voltage regulation | The output voltage is adjustable throughout the whole process, and the potentiometer V can be adjusted manually. You can also use an external 0-5V or 0-10V to adjust the output voltage (this function needs to be modified) | |||||||
| Output current regulation | The output current is adjustable. The potentiometer can be adjusted manually. When the load reaches the current setting value, the power supply will output in constant current mode | |||||||
Protection
function
| Overload protection | The overload protection mode is the constant current limiting mode, the lock output current value remains unchanged, and the output voltage decreases with the increase in load | ||||||
Output short circuit protection | After the output short circuit, there is no voltage output, and the output voltage will be automatically restored after the short circuit is removed | |||||||
Output overvoltage protection | When the output voltage increases to 115% of the rated voltage, the power will be turned off Output, not automatically restored. To turn off the input voltage, wait for 10 seconds and then turn it on again | |||||||
| Overheating protection | When the temperature of the heat sink of the PWM transistor reaches 85°C±5%, the output voltage is turned off, and the temperature drops to 75°C±5%, and it will automatically recover | |||||||
Security
and EMC standard
| EMC standard | MEET EN55022 CLASS B, EN61000-3-2 | ||||||
| Insulation impedance | I/P-O/P,I/P-FG,0/P-FG:100M Ohms /500VDC /25℃/70%RH | |||||||
| Leakage current | ≤3.5MA/AC220V | |||||||
| Withstand voltage | Input and output: 3000VAC Input and ground: 1500vac
Between output end and housing: 500VAC | |||||||
other
| Heat dissipation mode | Fan heat dissipation (temperature control automatic speed regulating fan, double
fan, internal air-blowing mode) | ||||||
Cooling fan Noise value | In the indoor environment of about 25 dB, when two fans rotate at full speed, about
42 dB is measured at 50cm away from the power supply | |||||||
| working temperature | -30 ℃ - 45 ℃. To reduce power under a high-temperature environment, refer to the temperature load drop curve below | |||||||
| size | Length 280mm * width 140mm * height 65mm | |||||||
| weight | 2.3kg (excluding package and accessories) | |||||||
| Installation hole position | The length spacing is 254MM and the width spacing is 122mm. Use external fittings
bracket | |||||||
| Tips | 1. Pay attention to ventilation and heat dissipation during use. Do not install the power supply in a fully sealed box. The heat dissipation outlet of the power supply and the fan inlet cannot be blocked by objects.
2. This power supply is only for indoor use, not rainproof, not waterproof, not dustproof, not for outdoor use, not suitable for high-temperature environments above 50 ℃ |
