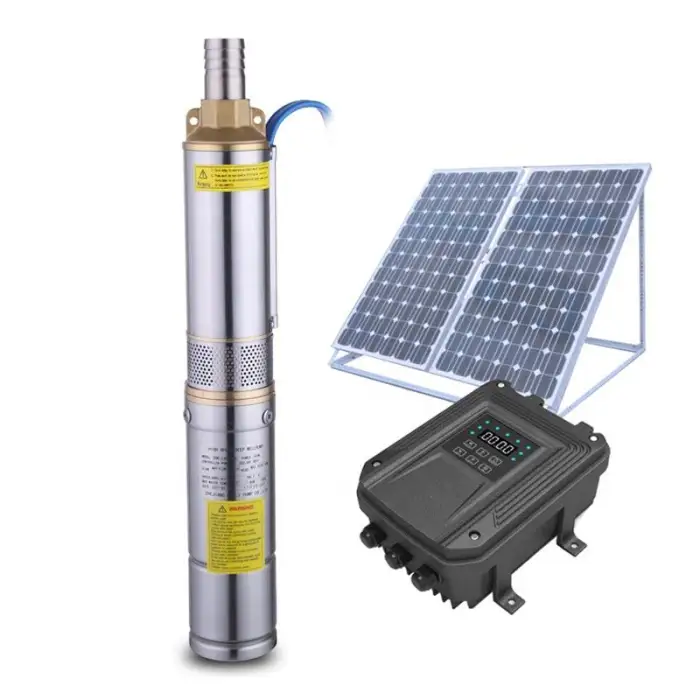

Submersible Deep Well Pump DC Solar Power Borehole Water Pump System for Irrigation

The Submersible Deep Well Pump DC Solar Power Borehole Water Pump System is a reliable and eco-friendly solution for irrigation and water supply. Powered by solar energy, this system is designed to provide efficient water pumping from deep wells and boreholes for agricultural irrigation and water treatment applications.

Key Features:

• Solar-Powered Efficiency: Uses solar energy to power the pump, offering a sustainable and cost-effective solution for irrigation and water supply needs.
• Available in Multiple Power Options: Choose from a range of power options (180W, 300W, 400W, 550W, 1100W) to suit different system requirements and water pumping needs.
• Stainless Steel Construction: Built with high-quality stainless steel for the pump body, ensuring durability, resistance to corrosion, and long-term reliability.
• Multistage Pump Design: Features a multistage pump structure for smooth and efficient water movement, ideal for deep wells and high-pressure applications.
• High Flow Rate: Capable of a maximum flow rate of 38m³/h, making it suitable for large-scale irrigation and water supply systems.
• Max Head of 140M: Capable of pumping water up to 140 meters in height, ideal for deep well applications.
• Voltage Options: Available in DC24, DC48, DC72, and DC96 voltage configurations for different power supply needs.
• Compatible Solar Panel Sizes: Works with solar panels ranging from 250W to 1000W to optimize energy use and system efficiency.
• 1-Year Warranty: Includes a 1-year warranty for added peace of mind and assurance of quality.
• Wide Application Range: Perfect for water treatment, irrigation systems, and water supply in rural and remote areas.

This solar-powered deep well pump system is a highly efficient and eco-friendly solution for accessing water from deep wells and boreholes. It is designed to provide reliable, sustainable water pumping for a variety of applications, including agriculture and water treatment.

Product Info Gallery

Water for livestock, bath, gardening, dripped hole, borehole, deep wellWater for crop irrigation, farm&ranchDrinking and cooking water supply

Dc solar water pump is an environmentally friendly water supply solution. Dc solar water pump with permanent magnet motor, can effectively use natural energy. And where is the sunshine in the world today is rich too, especially the lack of electricity in remote areas without electricity the most attractive way of water supply, using easily and limitless reserve of solar energy, the system automatically the sunrise, sunset, and jehiel, and no personnel supervision, maintenance workload can be minimized, is the ideal economic, reliability and environmental benefits for the integration of green energy system.The pump adapt to the characteristic weather profile of any given area. A battery backup system can store the extra energy generated and take over when the energy from nature is not available.

Advantage:

1. High efficiency, small size, light weight, more functions.

2. MPPT function.
3. Automatically working function.
4. Work with both solar power and batteries, can connect with solar panels and batteries at same time, will use solar power in advance which is more higher efficient than MTTP function.
5. Do not need deep well float switch, if there is no water in well for 1 minute, solar water pump dc brushless will stop working automatically. After 30 minutes, pump will start automatically power on to test whether there is water or not.
6. When power on the solar pump system, controller will detect the system of energy source to see it is solar panels or batteries, then start working. If there is solar power then use solar power, if no solar power will use batteries automatically.
